MICROTHERM® (SEMI-)QUILTED

Flexible microporous insulation for small pipes

MICROTHERM® (SEMI-)QUILTED are flexible microporous insulation panels designed to customer specifications. These thin and lightweight panels have excellent thermal properties, making them ideal for applications with complex 2D and 3D shapes with severe space constraints.

MICROTHERM® (SEMI-)QUILTED is available in three different types with a classification temperature of 1000 °C or 1200 °C. Next to a standard version, the 1000 °C grade is also available in a hydrophobic version, ideal for applications where contact with liquid water or condensation is possible.

MICROTHERM® SEMI-QUILTED has one-directional stitching (2D flexure) and MICROTHERM® QUILTED two-directional stitching (3D flexure). The core is an opacified blend of filament reinforced pyrogenic silica or alumina for the 1200 grade, covered with in a glass cloth outer envelope.

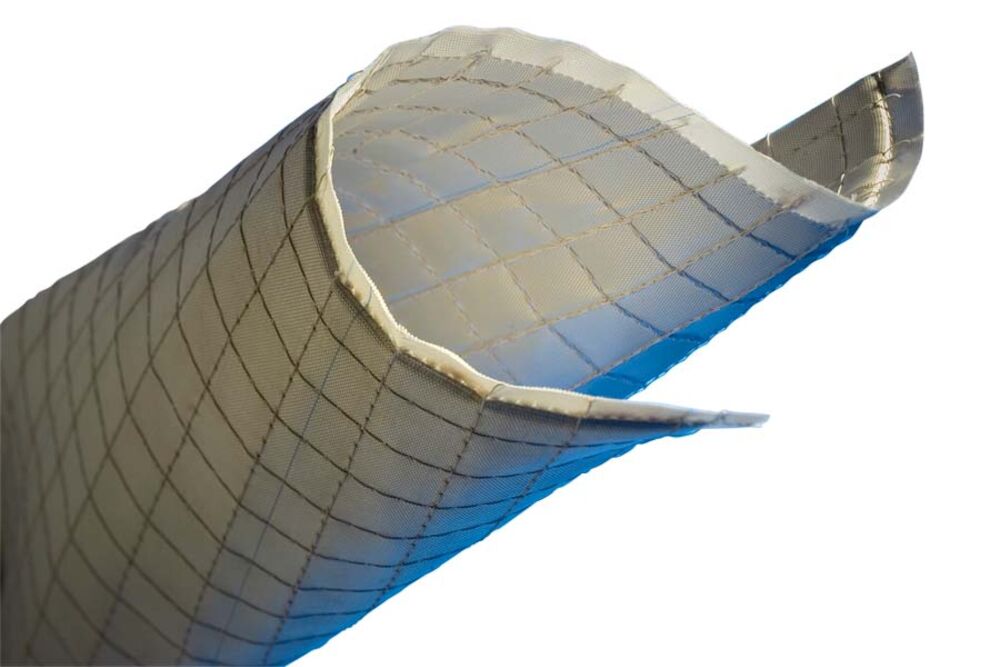

MICROTHERM QUILTED-1000R white flexible microporous insulation panels
MICROTHERM QUILTED-1000R white flexible microporous insulation panels

Further Information

Applications:

  • 3D shapes;
  • Aerospace;
  • Automotive;
  • Small radius piping

Benefits:

  • High thermal performance;
  • Flexible, thin and lightweight;
  • Custom-made to customer requirements;
  • Resistant to shock and vibration;
  • Non-combustible

Please note
All physical and mechanical values are averages based on standard production and tested according to internal procedures. The typical values are given for guidance. The figures can change dependent on the test methods used. If a particular value is of prime importance for a specification, please consult Promat Technical Department.
