PROMATECT®-H

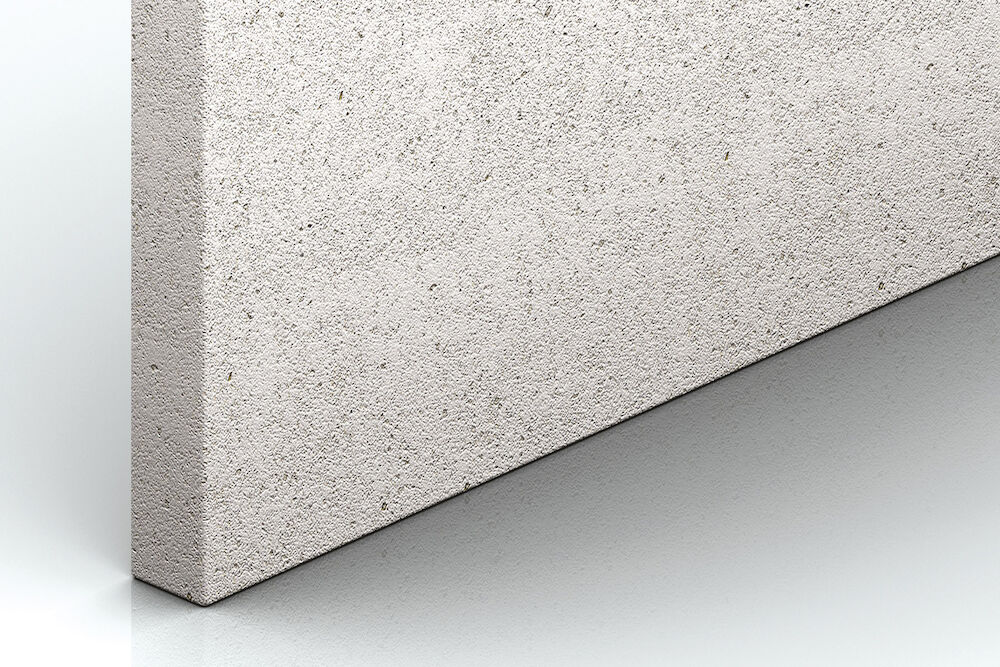

PROMATECT®-H is a non combustible matrix engineered mineral board reinforced with selected fibres and fillers. It does not contain formaldehyde.

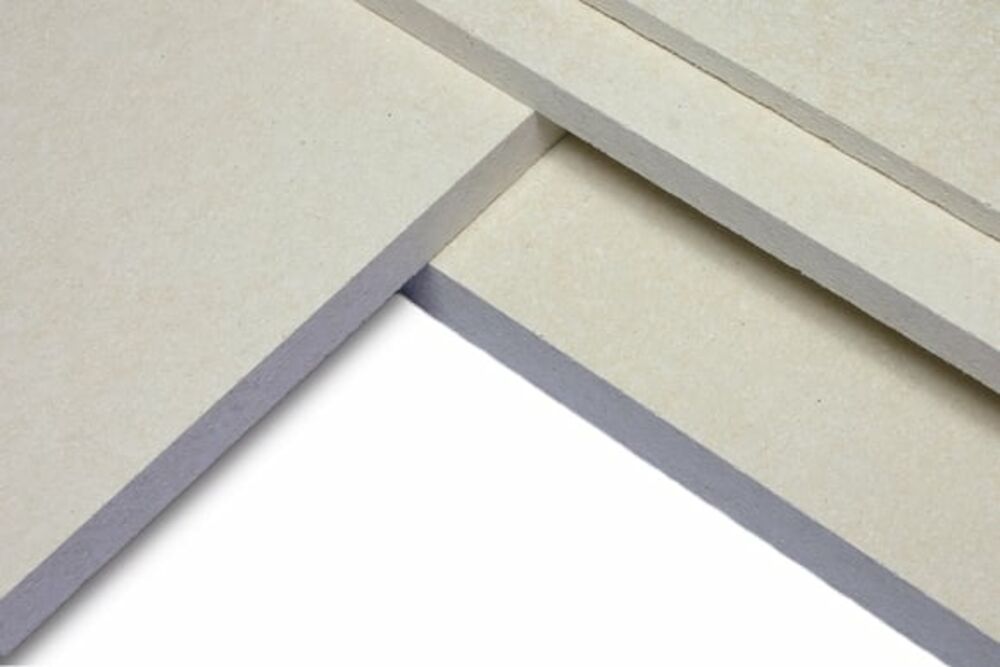

PROMATECT®-H is off-white in colour and has a smooth finish on one face with a sanded reverse face. The board can be left undecorated or easily finished with paints, wallpapers or tiles.

PROMATECT®-H is resistant to the effects of moisture and will not physically deteriorate when used in damp or humid conditions. Whilst its performance characteristics are not degraded by age or moisture, PROMATECT®-H is not designed for application in areas subject to continual damp or high temperatures.

PROMATECT®-H
PROMATECT®-H

Further Information

Applications:

Fire protection of steel and concrete structures, ceilings, partitions and shaft walls.

Benefits:

  • Non-Combustible
  • Resistant to the effects of moisture and humidity
  • Hard wearing and resistant to impact
  • Up to 4hr protection for some systems
  • Performance characteristics are not degraded by age or moisture
Reaction to fire: A1, non-combustible
Use Category: Y, Z1, Z2
Approx. Alkalinity (pH): 12 pH
Approx. Moisture Diffusion Resistance Min (μ): 20
Approx. Thermal Conductivity @ 20 °C (W/m°K): 0.175 W/m K
Bending Strength Longitudinal (N/mm²): 7.6 N/mm²
Tensile Strength Longitudinal (N/mm²): 4.8 N/mm²
Compressive Strength (N/mm² perpendicularly to the board surface): 9.3 N/mm²
Storage Conditions: Store in a dry and well-ventilated space, under cover, on a flat surface.

Please note
All physical and mechanical values are averages based on standard production and tested according to internal procedures. The typical values are given for guidance. The figures can change dependent on the test methods used. If a particular value is of prime importance for a specification, please consult Promat Technical Department.
