Up to 240 minutes fire rated Riser Pipe Protection - PROMINA®-60

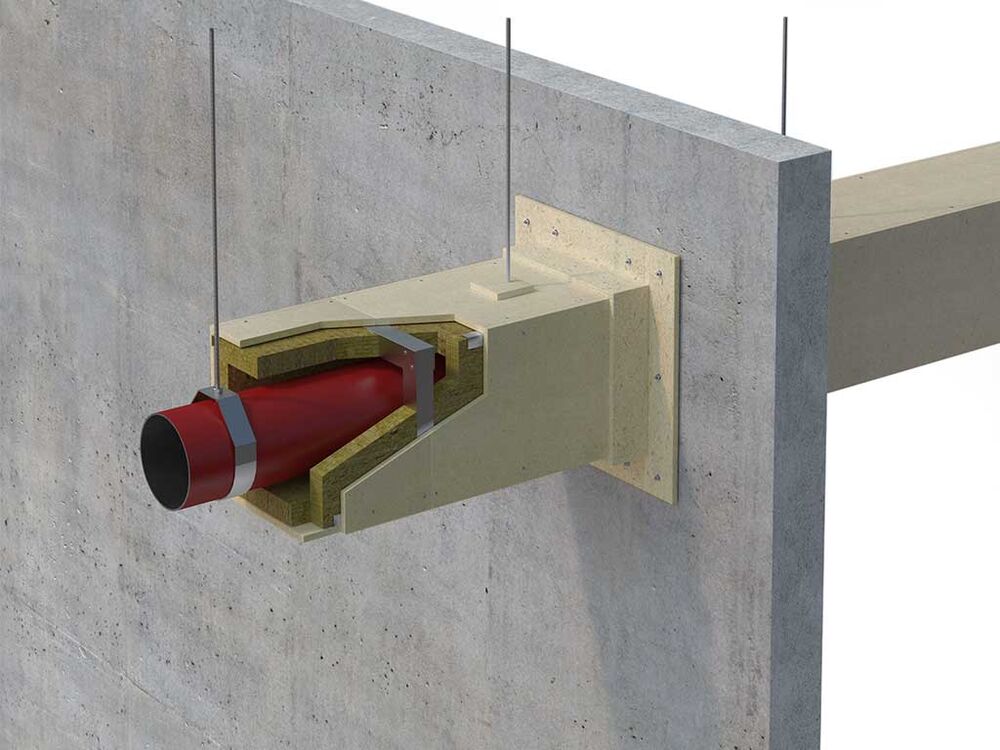

  • Assembling a riser pipe enclosure with a layer of PROMINA®-60 board, 12mm thick, to form an encasement by securing the board to the steel angle at all four corner joints and to the channel collar frame at the board joints using screws. Infill the encasement with mineral wool insulation.
120 minutes fire rated riser pipe protection PROMINA-60
120 minutes fire rated riser pipe protection PROMINA-60

Further Information

Advantages:

  • Good thermal properties
  • Excellent mechanical and thermal characteristics
  • Tested and assessed in accordance with the BS 476: Part 20: 1987 & FSB/PSB/001/00

Application:

  • Commercial, industrial, institutional, residential and high rise constructions, or in the restoration of existing buildings

Fire Resistance:

240 min

Product:

PROMINA®-60 1 x 12mm

Exposure to fire:

Internal and external

Fire Resistance Level:

FRL 240/240/240
Fire Resistance: 240 min
Exposure to fire: Internal and external
Installation Method: Building services
