120 minutes fire rated PROMINA®-60 Steel stud partition - resisting fire from both sides

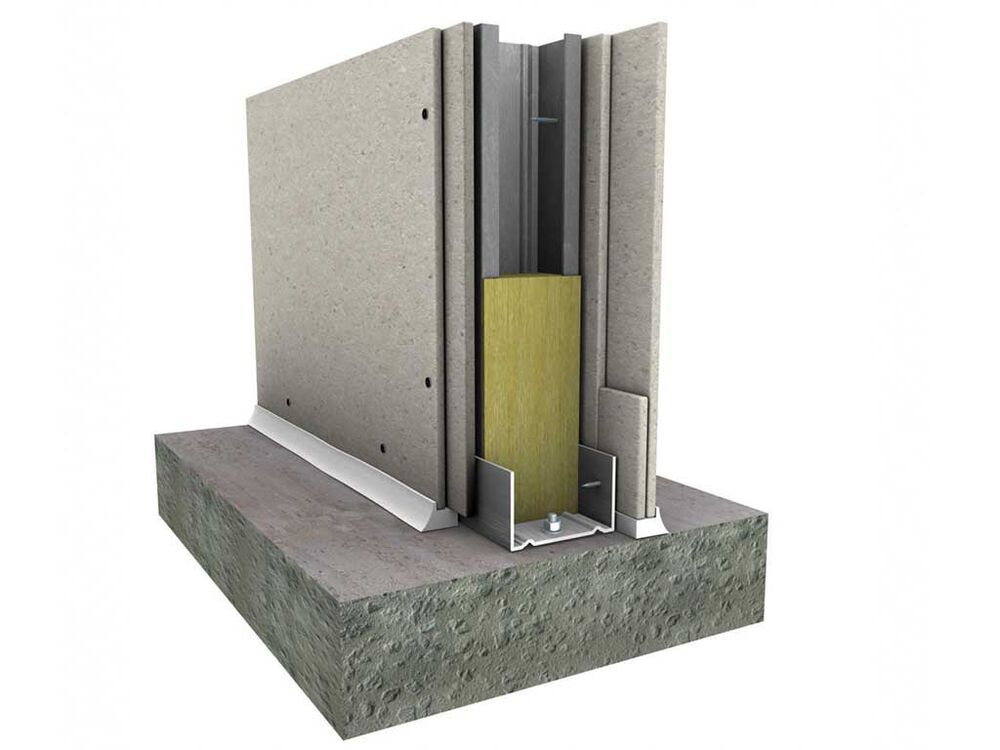

  • Assembling of a single layer of PROMINA®-60 board, 9mm thick, screw-fixed along with a cover strip on both sides of the steel channel flange, with a layer of mineral wool cavity laid in between the framing for a total system thickness of 128mm.
120 minutes fire rated steel stud partition PROMINA-60
120 minutes fire rated steel stud partition PROMINA-60

Further Information

Advantages:
  • Time and cost effectiveness
  • Lightweight* Thermal resistance
  • Impact resistance
  • Fire resistance performance
  • Tested and assessed in accordance with the BS 476: Part 22: 1987
Application:
  • Commercial, industrial, institutional, residential and high rise constructions, or in the restoration of existing buildings
Fire resistance: 120 min
Thickness: 128 mm
Product: PROMINA®-60 1 x 9mm each side
Exposure to fire: Both Sides
Fire Resistance Level: FRL -/120/120
Fire resistance: 120 min
