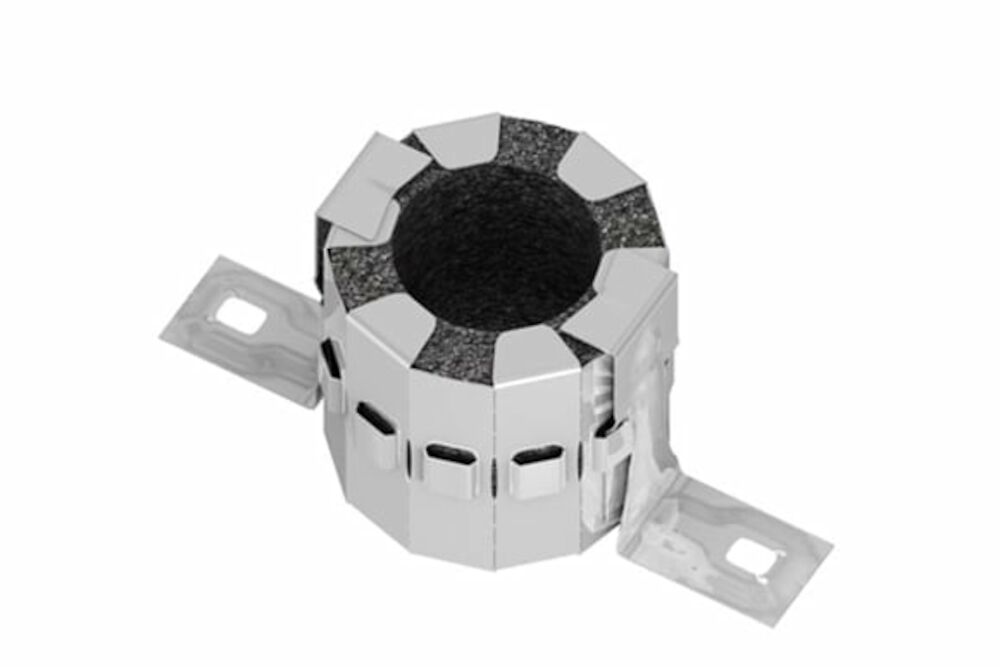

PROMASEAL® Conduit Collar

PROMASEAL® Conduit Collar is designed for retrofitting around small (<32mm) plastic conduit pipes that pass through fire resistant floors and walls . It comes in one size (32mm) and can be used on smaller diameter conduits without modification. The collar is fixed to the floors/walls with two brackets.

Insulation criteria will vary depending on types of the plastic pipes and the penetrating building element through which the collar passes.

The collar is supplied pre-made with an internal diameter of 32mm, however no change is required to the collar for pipes of smaller diameters.

PROMASEAL® Conduit Collar

Further Information

Benefits:

  • Fire Resistance Level up to 240 minutes
  • Suitable for pipes from 16 to 32mm
  • Tested with uPVC, PVC, HDPE,PB,PEX, cables, conduits and many others
  • Application onto concrete or masonry wall, floor or fire rated partitions

Please note
All physical and mechanical values are averages based on standard production and tested according to internal procedures. The typical values are given for guidance. The figures can change dependent on the test methods used. If a particular value is of prime importance for a specification, please consult Promat Technical Department.
