240 minutes fire rated PROMINA®-60 Steel stud partition - resisting fire from both sides

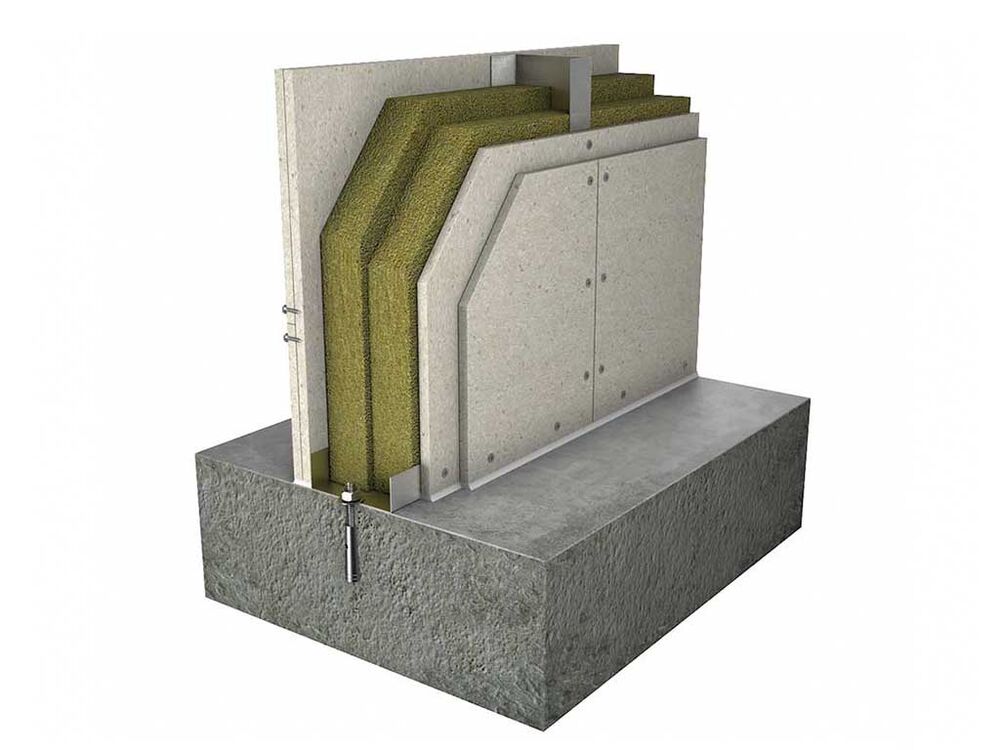

  • Assembling of a two layers of PROMINA®-60 board, 2 x 9mm thick, screw-fixed on both steel channel flange, with a layer of mineral wool cavity laid in between the framing for a total system thickness of 136mm.
240 minutes fire rated steel stud partition PROMINA-60
240 minutes fire rated steel stud partition PROMINA-60

Further Information

Advantages:
  • Time and cost effectiveness
  • Lightweight
  • Thermal resistance
  • Impact resistance
  • Fire resistance performance
  • Tested and assessed in accordance with the BS 476: Part 22: 1987
Application:
  • Commercial, industrial, institutional, residential and high rise constructions, or in the restoration of existing buildings
Fire Resistance: 240 min
Thickness: 136 mm
Product: PROMINA®-60 2 x 9mm each side
Exposure to fire: Both Sides
Fire Resistance Level: FRL -/240/240
Fire Resistance: 240 min
