240 minutes fire rated Partition EN - PROMATECT®-S + PROMATECT®-200

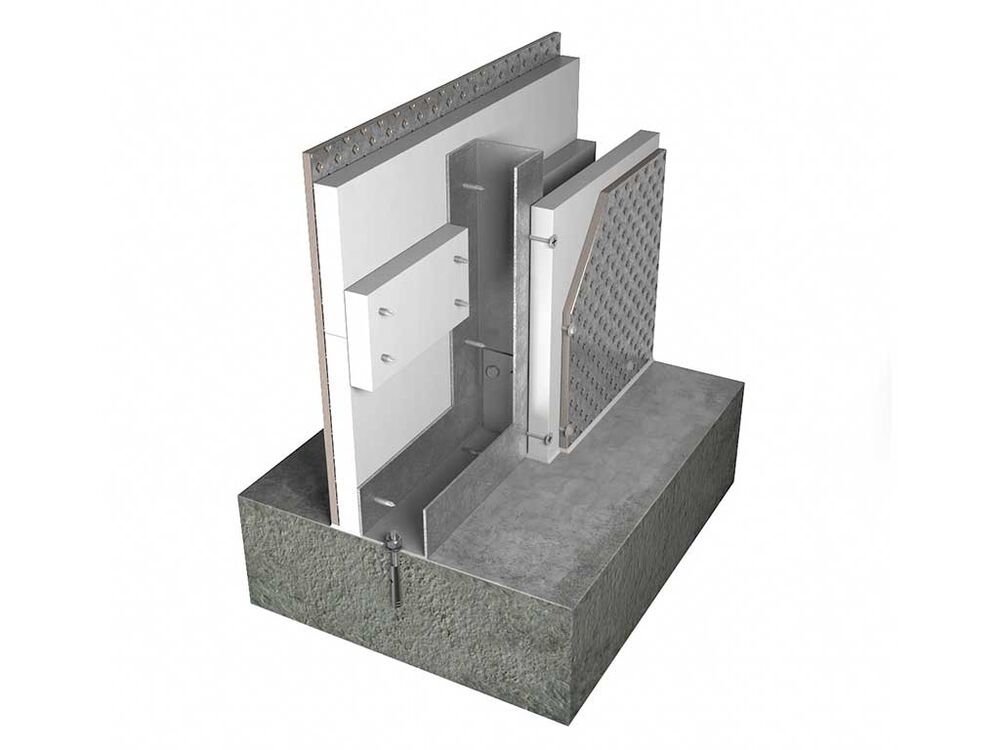

  • Assembling a single layer of PROMATECT®-S board, 9.5mm thick, and a single layer of PROMATECT®-200 board, 25mm thick, both screwed onto both sides of galvanized steel studs, with PROMATECT®-200 cover strips at horizontal joints, for a total system thickness of 129mm.
90 minutes fire rated steel stud partition EN PROMATECT-S and PROMATECT-200
90 minutes fire rated steel stud partition EN PROMATECT-S and PROMATECT-200

Further Information

Advantages:
  • Time and cost effectiveness
  • Lightweight
  • Thermal resistance
  • Impact resistance
  • Fire resistance performance
  • Tested and assessed in accordance with the BS EN 1364: Part 1
Application:
  • Commercial, industrial, institutional, residential and high rise constructions, or in the restoration of existing buildings
Fire Resistance: 240 min
Thickness: 149 mm
Product: PROMATECT®-S 1 x 9.5mm + PROMATECT®-200 1 x 25mm
Exposure to fire: Both Sides
Fire Resistance Level: REI -/240/240
Fire Resistance: 240 min
