120 minutes fire rated Partition - PROMATECT®-S

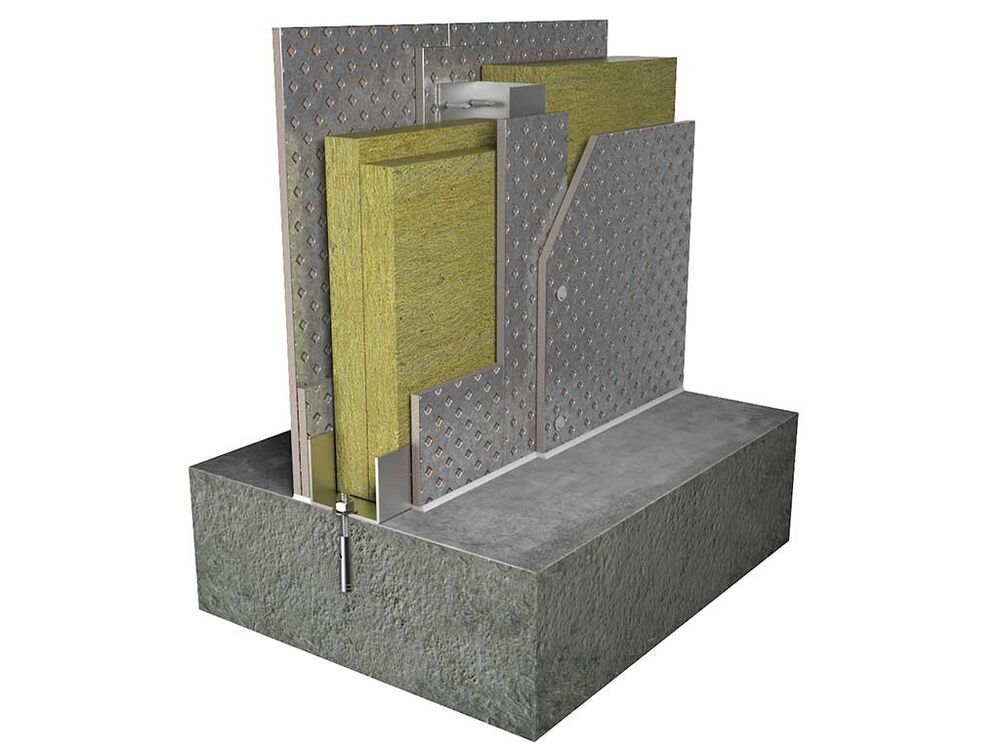

  • Assembling of a single layer of PROMATECT®-S board, 9.5mm thick, screwed onto both sides of galvanised steel studs along with a layer of cover strips, two layer of mineral wool cavity infill in between the partition wall, for a total system thickness of 118mm.
120 minutes fire rated steel stud partition EN PROMATECT-S
120 minutes fire rated steel stud partition EN PROMATECT-S

Further Information

Advantages:
  • Time and cost effectiveness
  • Lightweight
  • Thermal resistance
  • Impact resistance
  • Fire resistance performance
  • Tested and assessed in accordance with the BS 476: Part 21: 1987
Application:
  • Commercial, industrial, institutional, residential and high rise constructions, or in the restoration of existing buildings
Fire Resistance: 120 min
Thickness: 118 mm
Product: PROMATECT®-S 1 x 9.5mm
Exposure to fire: Both Sides
Fire Resistance Level: REI -/240/120
Fire Resistance: 120 min
