120 minutes fire rated PROMATECT®-H Steel stud partition - resisting fire from both sides

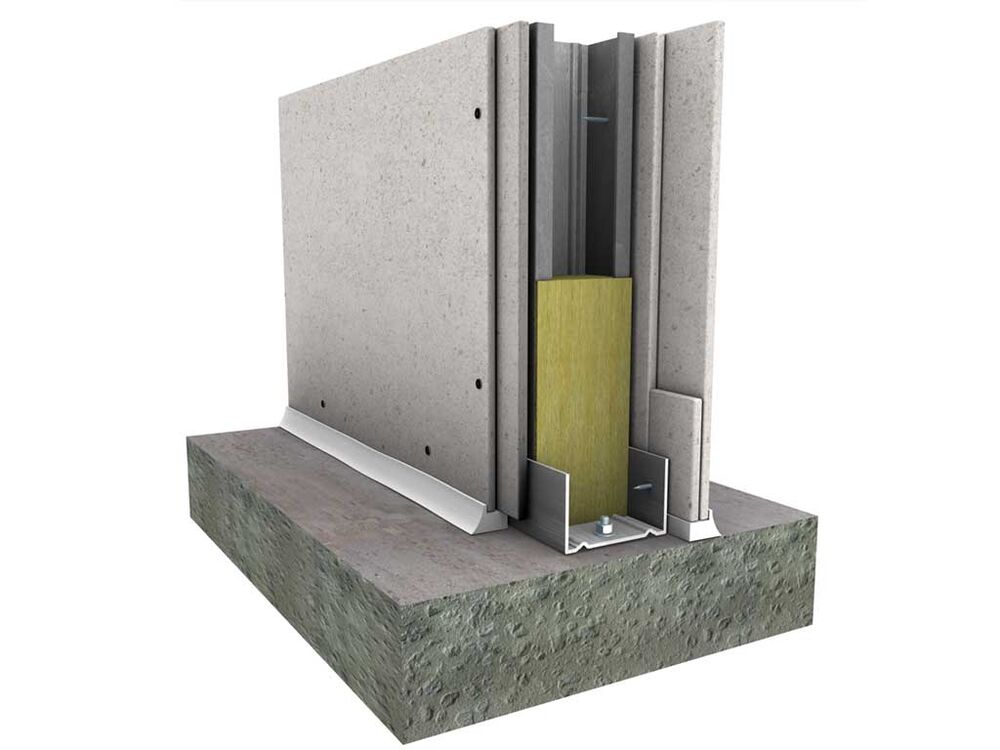

  • Assembling of a single layer of PROMATECT®-H board, 9mm thick, screwed onto both sides of galvanised steel studs along with a cover strip, mineral wool cavity infill in between the partition wall, for a total system thickness of 111mm.
  • Maximum height 7700mm
  • For higher heights, please consult Promat Technical Department.
60 minutes steel stud partition PROMATECT-H
60 minutes steel stud partition PROMATECT-H

Further Information

Advantages:
  • Time and cost effectiveness
  • Lightweight
  • Thermal resistance
  • Impact resistance
  • Fire resistance performance
  • Tested and assessed in accordance with the BS 476: Part 22: 1987
Application:
  • Commercial, industrial, institutional, residential and high rise constructions, or in the restoration of existing buildings
Fire Resistance: 120 min
Maximum Height: 7700 mm
Total Thickness: 111 mm
Product: PROMATECT®-H 1 x 9mm each side
Exposure to fire: From both sides
Fire Resistance Rating: FRR -/120/120
Fire Resistance Class: EI 120
Fire Resistance: 120 min
