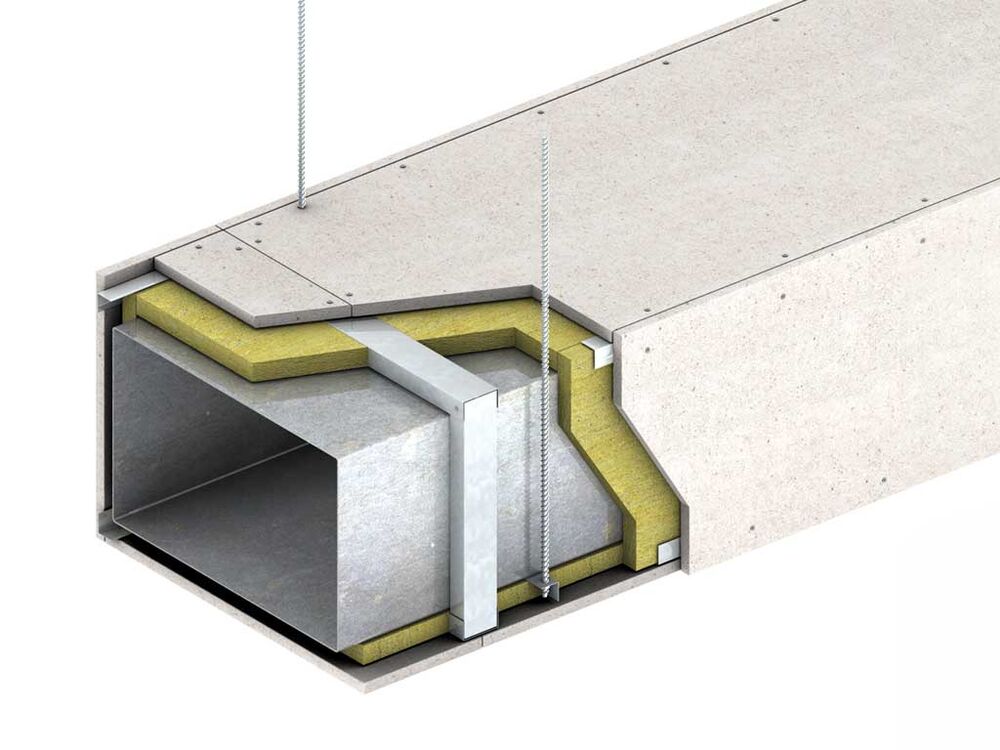

120 minutes fire rated PROMATECT®-H Cladding to steel ducts - resisting fire from internal and external

  • Assembling a single layer of PROMATECT®-H board, 15mm thick, to form an encasement by securing the board to the steel angle at corner joints and to the channel collar frame at the board joints using screws. Infill the encasement with mineral wool insulation.
120 minutes cladding to steel ducts PROMATECT-H
120 minutes cladding to steel ducts PROMATECT-H

Further Information

Advantages:

  • Good thermal properties
  • Excellent mechanical and thermal characteristics
  • Fire resistance performance
  • Tested and assessed in accordance with the BS 476: Part 24: 1987

Application:

  • Commercial, industrial, institutional, residential and high rise constructions

Fire Resistance:

120 min

Product:

PROMATECT®-H

Board Thickness:

15 mm

Exposure to fire:

From internal and external

Fire Resistance Rating:

FRR 120/120/120
Fire Resistance: 120 min
Exposure to fire: From internal and external
Installation Method: Steel duct
