60 minutes fire rated PROMINA®-60 M&E Services enclosure - resisting fire from internal and external

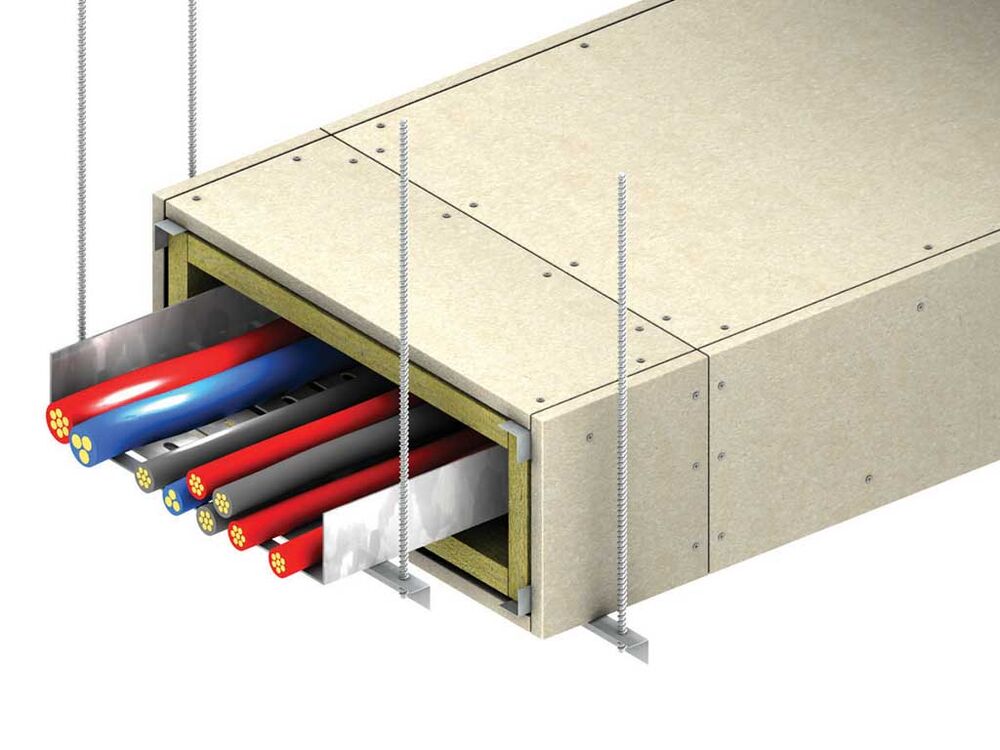

  • Assembling an E&M services enclosure with a layer of PROMINA®-60 board, 9mm thick, to form an encasement by securing the board to the steel angle at corner joints and to the channel collar frame at the board joints using screws. Infill the encasement with mineral wool insulation.
60 minutes mechanical and electrical services enclosure PROMINA-60
60 minutes mechanical and electrical services enclosure PROMINA-60

Further Information

Advantages:

  • Good thermal properties
  • Excellent mechanical and thermal characteristics
  • Tested and assessed in accordance with the BS 476: Part 20: 1987

Application:

  • Commercial, industrial, institutional, residential and high rise constructions

Fire Resistance:

60 min

Product:

PROMINA®-60

Board Thickness:

9 mm

Exposure to fire:

From internal and external

Fire Resistance Rating:

FRR -/60/60
Fire Resistance: 60 min
Exposure to fire: From internal and external
Installation Method: E&M services enclosure
