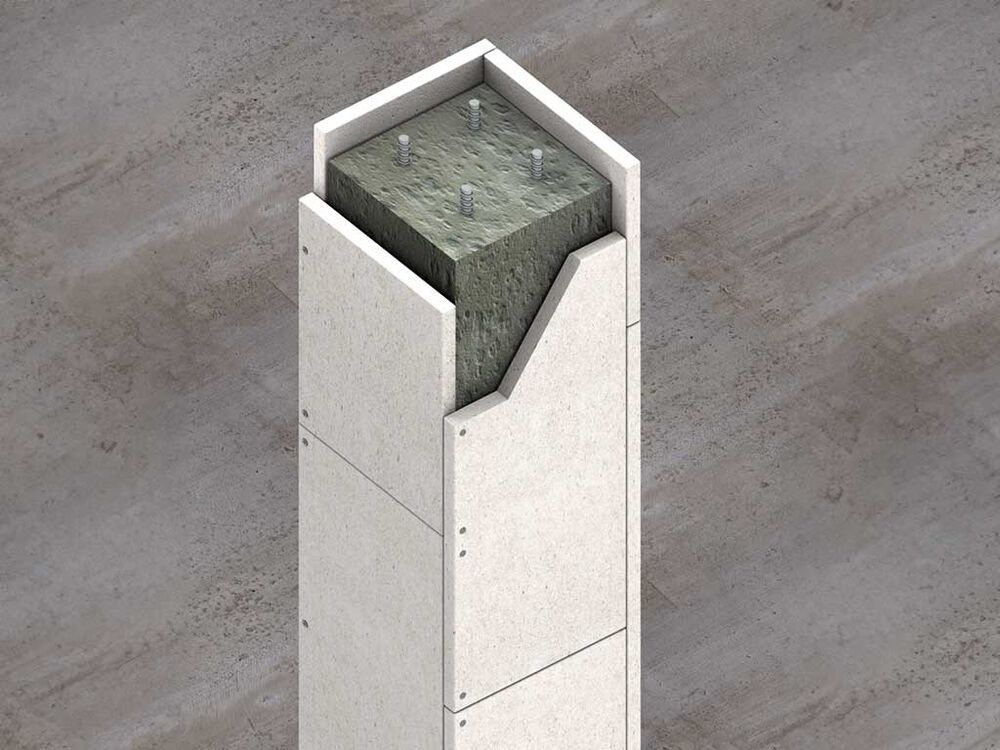

120 minutes fire rated PROMATECT®-H Cladding to concrete beams and columns

  • Assembling of a single layer of PROMATECT®-H board, thickness is determined by the required fire resistance, encases the concrete structure by secure with screw-fixing the board face to the edge.
120 minutes cladding to concrete beams and columns protection PROMATECT-H
120 minutes cladding to concrete beams and columns protection PROMATECT-H

Further Information

Fire Resistance: 120 min
Fire Resistance Class: R 120
Product: PROMATECT®-H
Advantages:
  • Lightweight
  • Thermal resistance
  • Impact resistance
  • Fire resistance performance
  • Tested and assessed in accordance with the BS 476: Part 21: 1987 & EN 13381-4
Application:
  • Commercial, industrial, institutional, residential and high rise constructions, or in the restoration of existing buildings
Exposure to fire: External
Fire Resistance Rating: FRR 120/-/-
Fire Resistance Class: R 120
Fire Resistance: 120 min
