60 minutes fire rated PROMATECT®-H Suspended ceiling with hanger channel - resisting fire from above and below

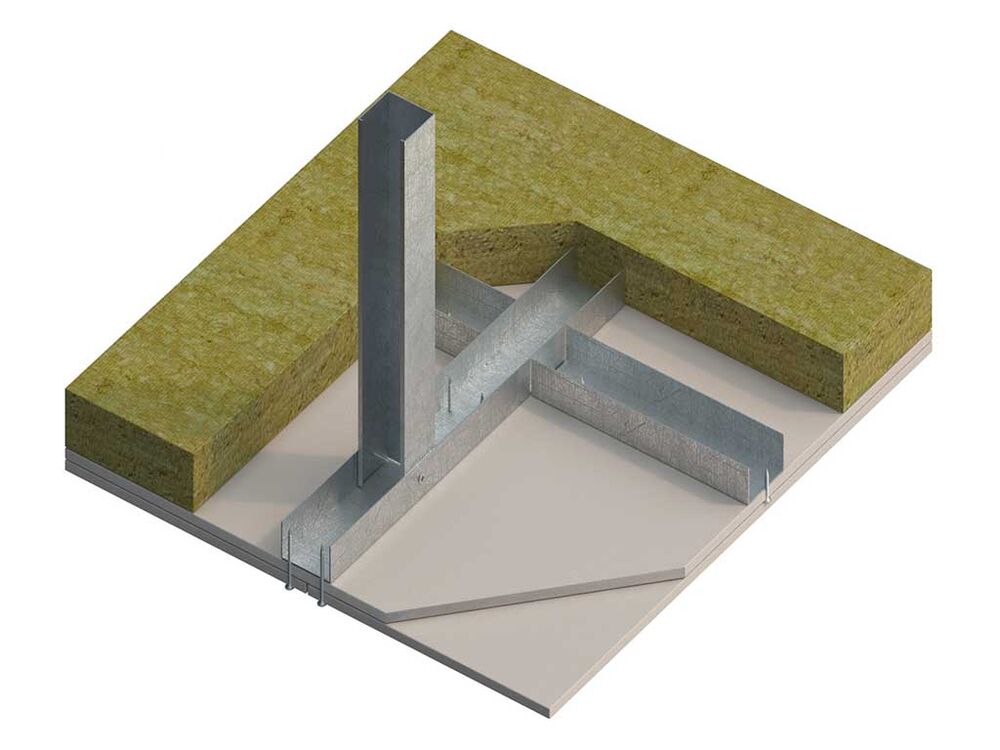

  • Assembling of a single layer of PROMATECT®-H board, 9mm thick, screw-fixed beneath the steel channel frame, with mineral wool cavity infill laid on top for a total system thickness of 129mm.
60 minutes suspended ceiling with hanger channel PROMATECT-H
60 minutes suspended ceiling with hanger channel PROMATECT-H

Further Information

Advantages:
  • Time and cost effectiveness
  • Lightweight
  • Thermal resistance
  • Impact resistance
  • Fire resistance performance
  • Tested and assessed in accordance with the BS 476: Part 22: 1987
Application:
  • Commercial, industrial, institutional, residential and high rise constructions, or in the restoration of existing buildings
Fire Resistance: 60 min
Total Thickness: 129 mm
Product: PROMATECT®-H 2 x 9mm one side
Board Thickness: 9 mm
Exposure to fire: From above and below
Fire Resistance Rating: FRR -/60/60
Fire Resistance Class: EI 60
Fire Resistance: 60 min

Installation:

Assembling of a two layer of PROMATECT®-H board, 2 x 9mm thick, screw-fixed beneath the steel channel frame, with mineral wool cavity infill laid on top to form a ceiling.
