240 minutes fire rated PROMATECT®-H Suspended ceiling integrity only - resisting fire from below

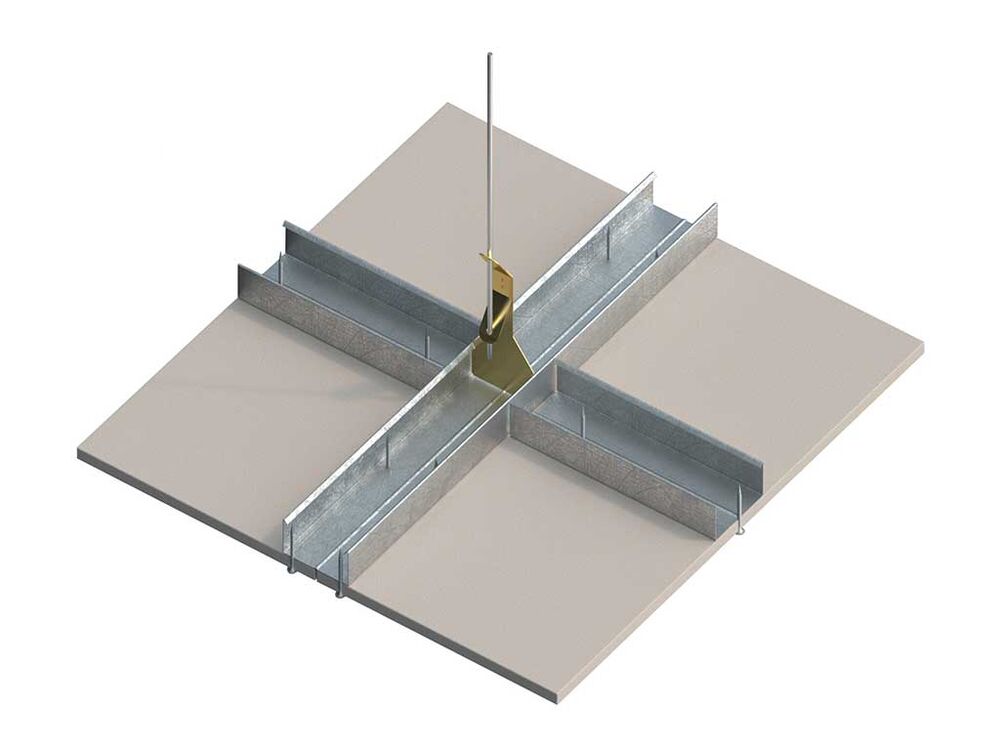

  • Assembling of a single layer of PROMATECT®-H board, 9mm thick, screw-fixed beneath the steel channel frame for a total system thickness of 36mm.

Further Information

Advantages:
  • Time and cost effectiveness
  • Lightweight
  • Thermal resistance
  • Impact resistance
  • Fire resistance performance
  • Tested and assessed in accordance with the BS 476: Part 22: 1987
Application:
  • Commercial, industrial, institutional, residential and high rise constructions, or in the restoration of existing buildings
Fire Resistance: 240 min
Total Thickness: 36 mm
Product: PROMATECT®-H 1 x 9mm one side
Exposure to fire: From below
Fire Resistance Rating: FRR -/240/-
Fire Resistance Class: e120
Fire Resistance: 240 min

Installation:

Assembling of a single layer of PROMATECT®-H board, 9mm thick, screw-fixed beneath the steel channel frame to form a ceiling.
