PROMASEAL®-PL

Fire stopping seal for versatile applications

PROMASEAL®-PL is a graphite-based intumescent fire protection laminate that creates high pressure on expansion when exposed to temperatures of approx. 150 °C. PROMASEAL®-PL forms a stable and compact char that closes gaps and other openings rapidly. This ensures a secure seal against the spread of smoke and fire inside the application or construction.

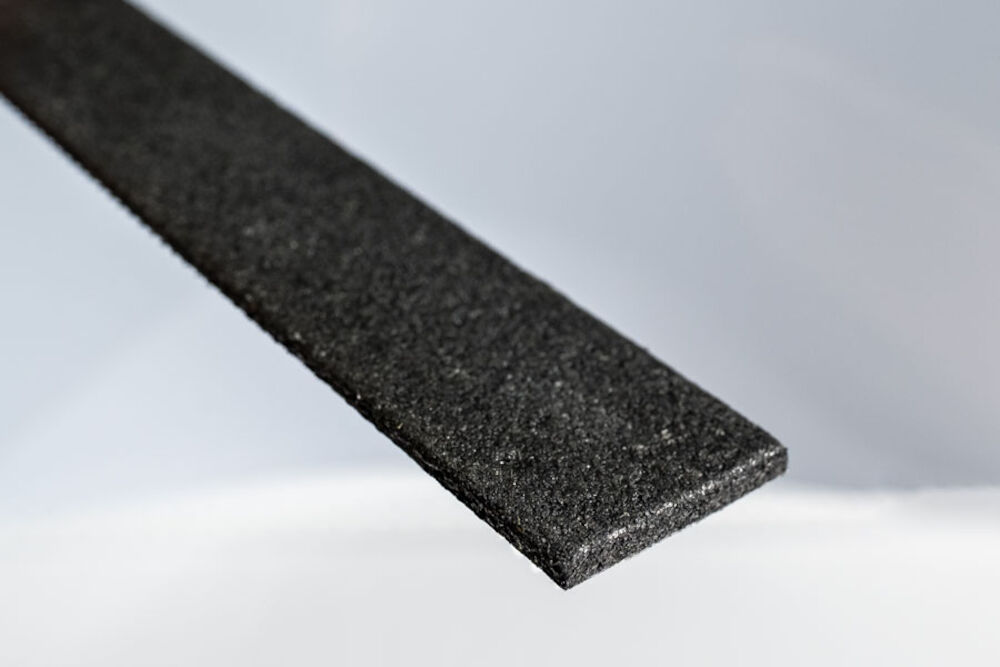

PROMASEAL®-PL anthracite grey fire protection laminate

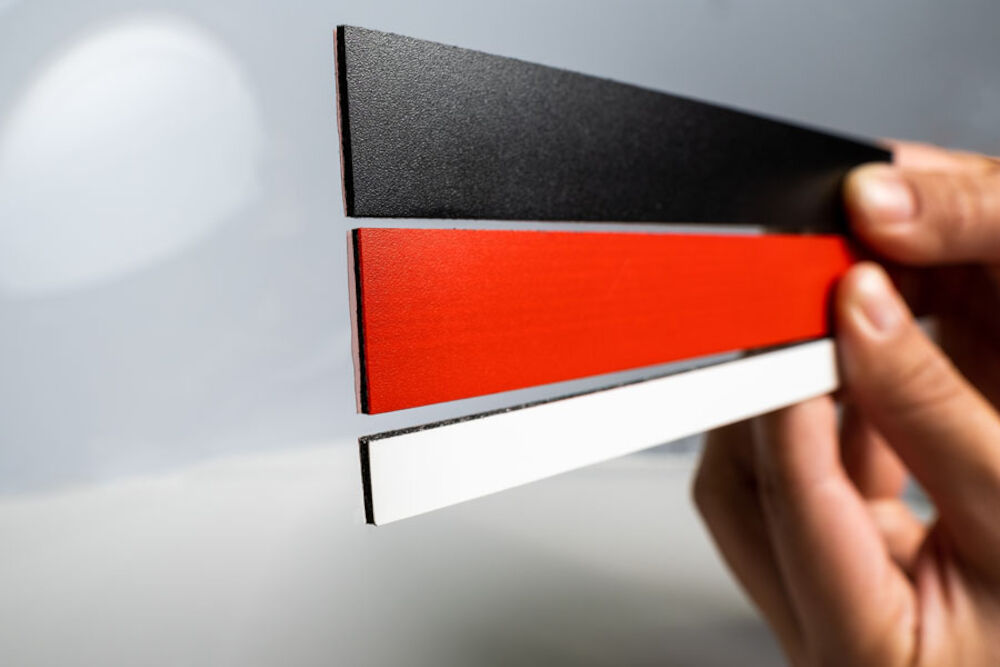

PROMASEAL®-PL anthracite grey fire protection laminate, self-adhesive with a decorative surface in red, black and white
PROMASEAL®-PL anthracite grey fire protection laminate
PROMASEAL®-PL anthracite grey fire protection laminate, self-adhesive with a decorative surface in red, black and white

Further Information

Applications:

  • Wooden doors;
  • Glazing;
  • Fire protection and access panels;
  • Facades;
  • Construction joints in walls and ceilings

Benefits:

  • Reliable and aesthetic seal against fire and smoke;
  • High expansion factor;
  • Easy to install;
  • Resistant to atmospheric effects (light, heat, frost, UV radiation, humidity);
  • Free from organic solvents;
  • Overpainting is possible with standard paints (e.g. acrylic, chlorinated rubber, 2 component xyresin paints, silicons, etc.) - preliminary tests concerning adhesion and compatibility required

Please note
All physical and mechanical values are averages based on standard production and tested according to internal procedures. The typical values are given for guidance. The figures can change dependent on the test methods used. If a particular value is of prime importance for a specification, please consult Promat Technical Department.
