INTRODUCING PROMATECT®-XW
THE FIRE PROTECTION BOARD FOR STRUCTURAL STEEL

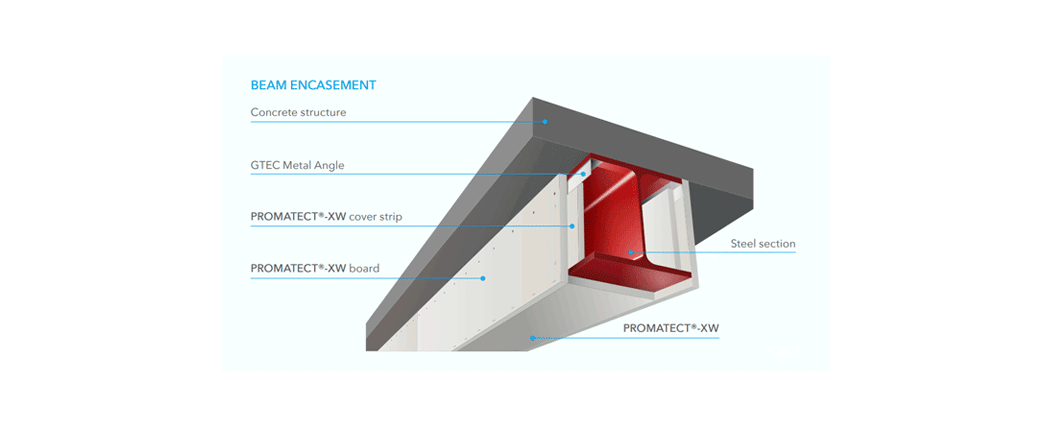

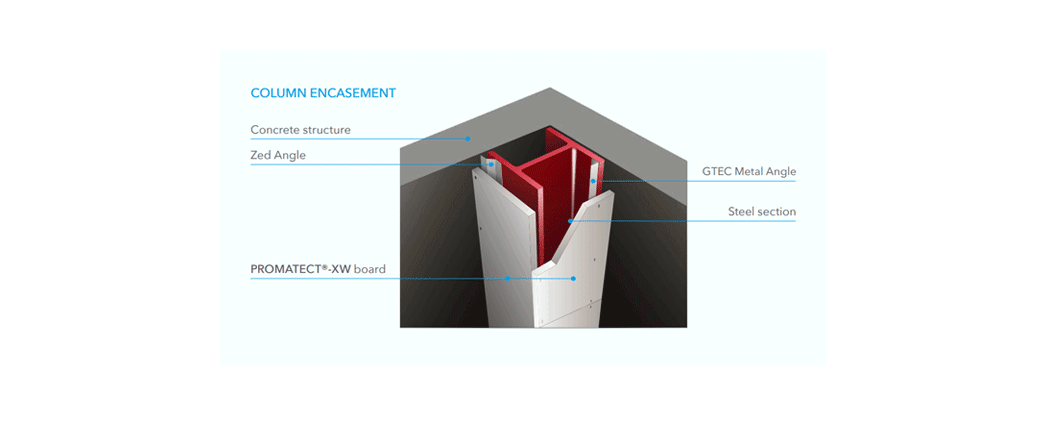

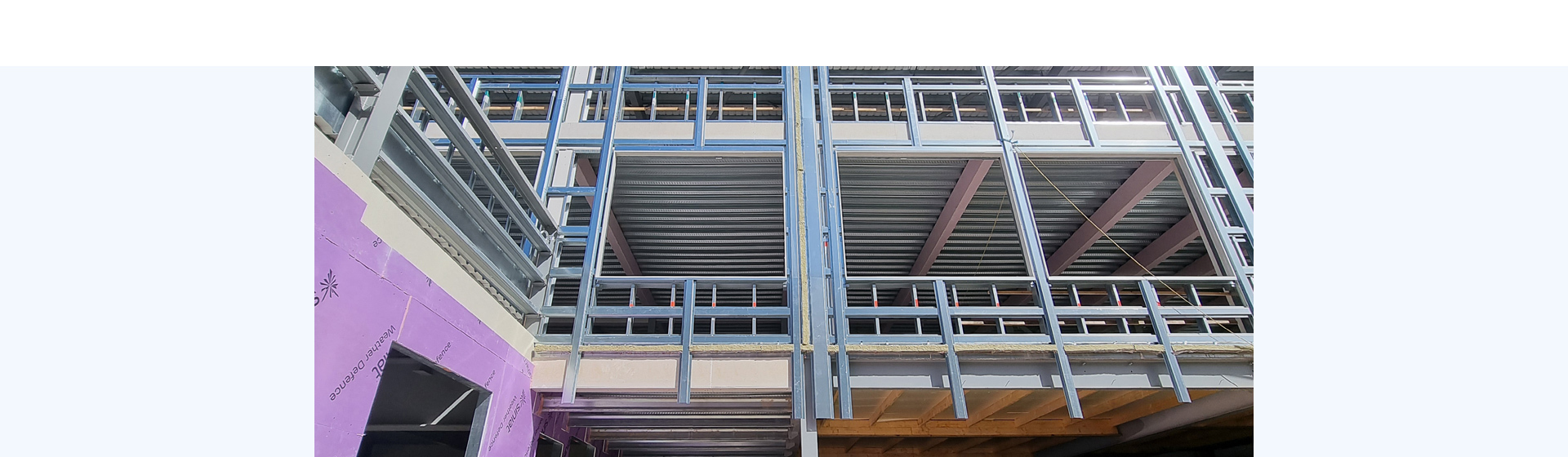

PROMATECT®-XW is a high performance, cost effective fire protection board used in the protection of structural steel, and provides an effective alternative to fireproof paint and intumescent coatings.

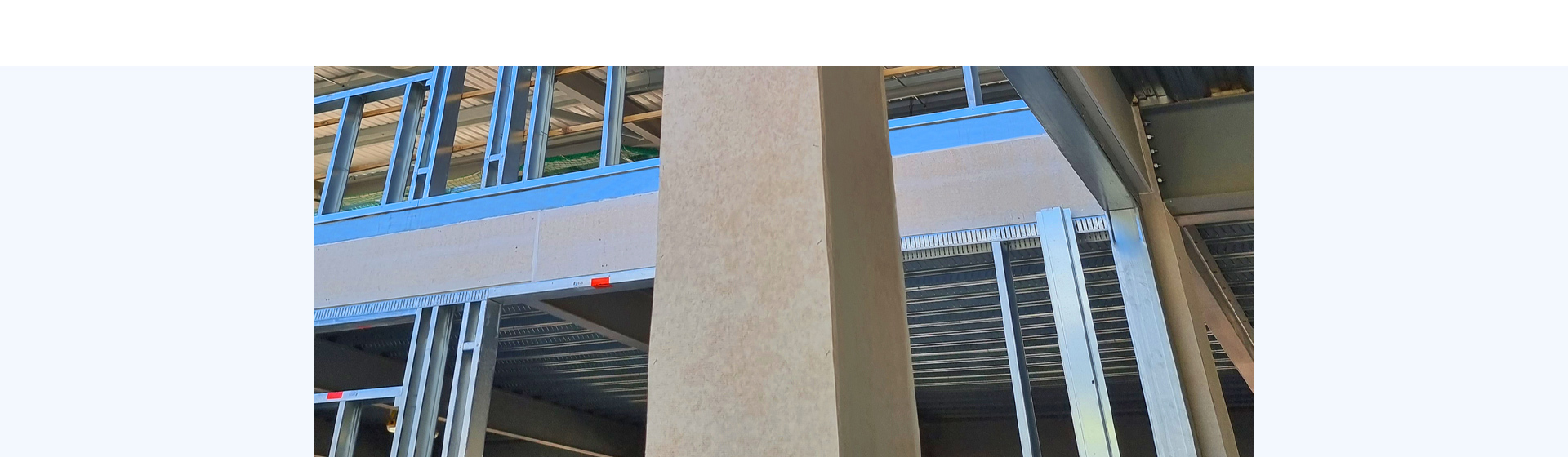

PROMATECT®-XW is A1 non-combustible and gives up to 60 minutes fire protection to structural steel columns and beams. It combines this performance with excellent weather resistance, meaning it can be installed and left exposed for up to 6-months on site.
It is simple, quick to install, and requires no specialist equipment.
PROMATECT®-XW is fully tested at limiting temperatures from 300ºC to 650ºC. The board is moisture resistant, allowing installation before the building is weathertight, and has a smooth, strong, impact resistant surface.
Need advice or support on how you can benefit
from using PROMATECT®-XW in your projects?
Get in touch:
E: technical.promat@etexbp.co.uk
T: 0800 145 6033​
Key features
|
What this means for you
|
Advantages
|

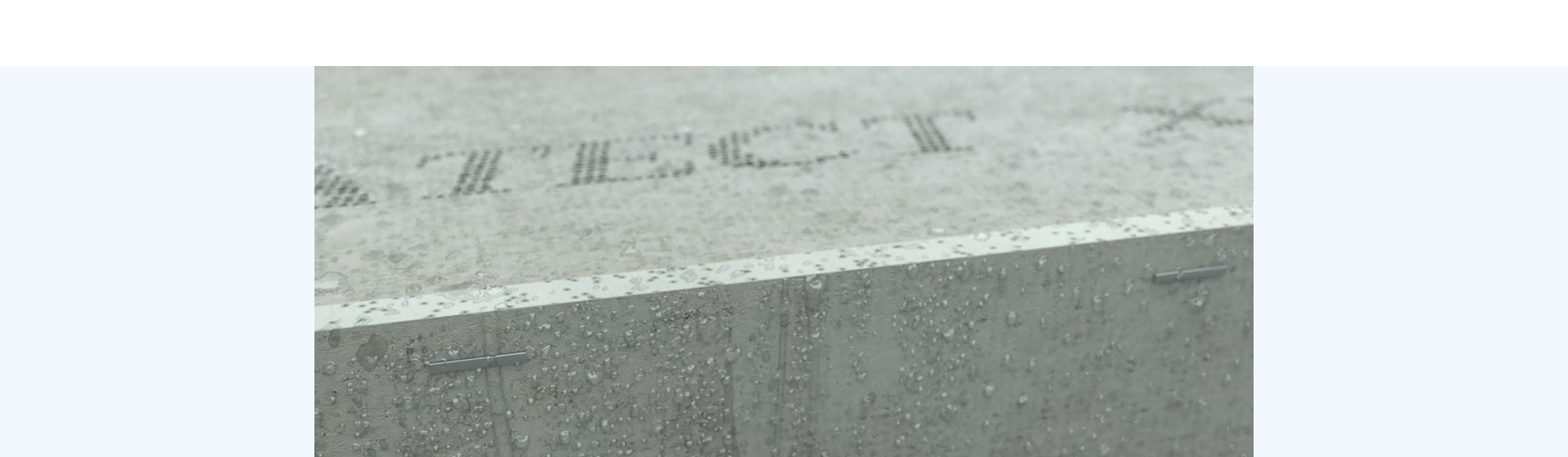

Water, weather and mould resistant.
|
Can be left be installed and left exposed for up to 6 months on site. |
Can be installed before the building is weathertight. Other trades can work at the same time also speeding up build time. |

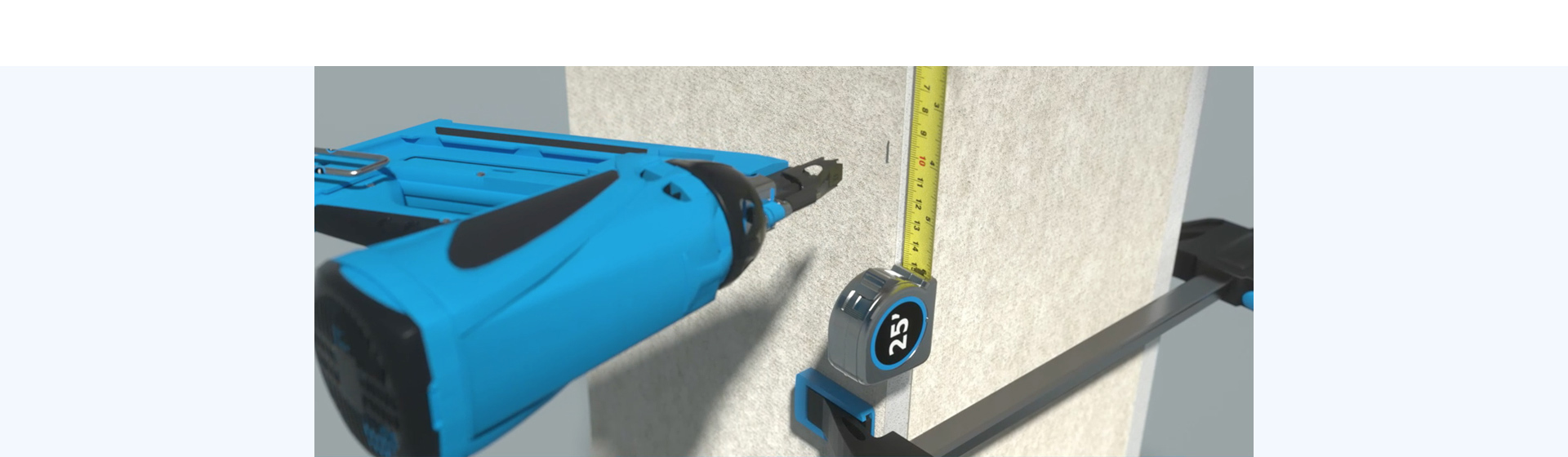

Quick and easy to cut and install, and requires no special preparation. | Save time, reduce installation costs and increase productivity (over existing solutions). |
Simple to install, no special preparation required (unlike paint and spray solutions). |

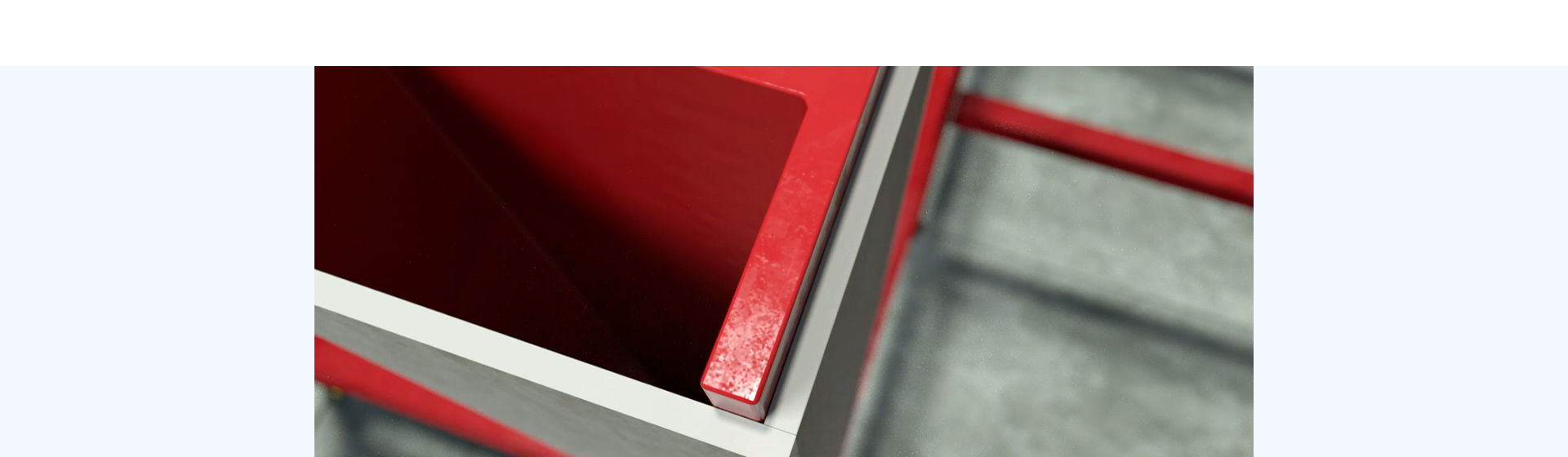

No need for a 50mm expansion zone (unlike most intumescent paints). | Save space while fully protecting the steel structure. | Increases usable floor area. |
Part of the Etex Thruwall full integrated fire solution. |
Solution and detailing from a single company. |
Seamless start to end solution. |
Space-saving frameless system with no need for addition adhesive or fillers. | Simplifies application and procurement. | Faster and less complicated to install and purchase |
Using board to protect structural steel is a dry trade and solvent free (unlike most paint). |
Cleaner process with no problems relating to spraying, solvent inhalation and mess. | Multiple trades can work on site at the same time making the construction process safer, tidier and faster. |
No need for specialist installers or equipment and can be precured as part of the overall drylining package. |
Simpler purchasing, stocking and installation. |
Saves time, money, space and the number of workforce on site. |
PROMATECT®-XW CHARACTERISTICS
Code
|
Width x Length
(mm)
|
Thickness
(mm)
|
Edge
|
Approx Weight
(dry, kg/m2)
|
Approx Weight
(5% moisture, kg/m2)
|
194712 | 1200 x 2500 | 15 | Square | 14.0 | 14.7 |
INFORMATION AND RESOURCES

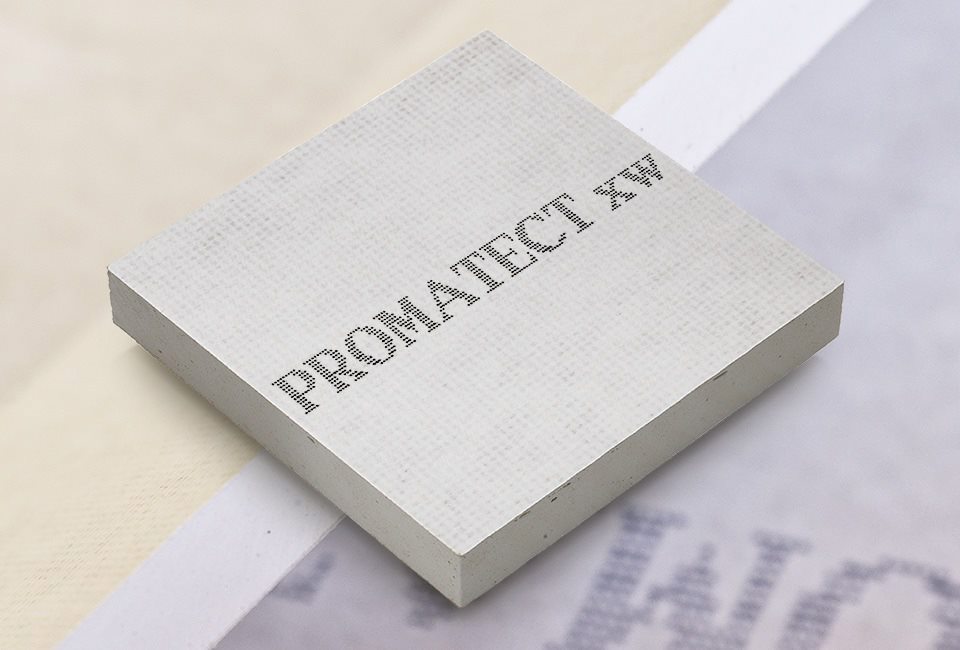

Product Details
Product Brochure

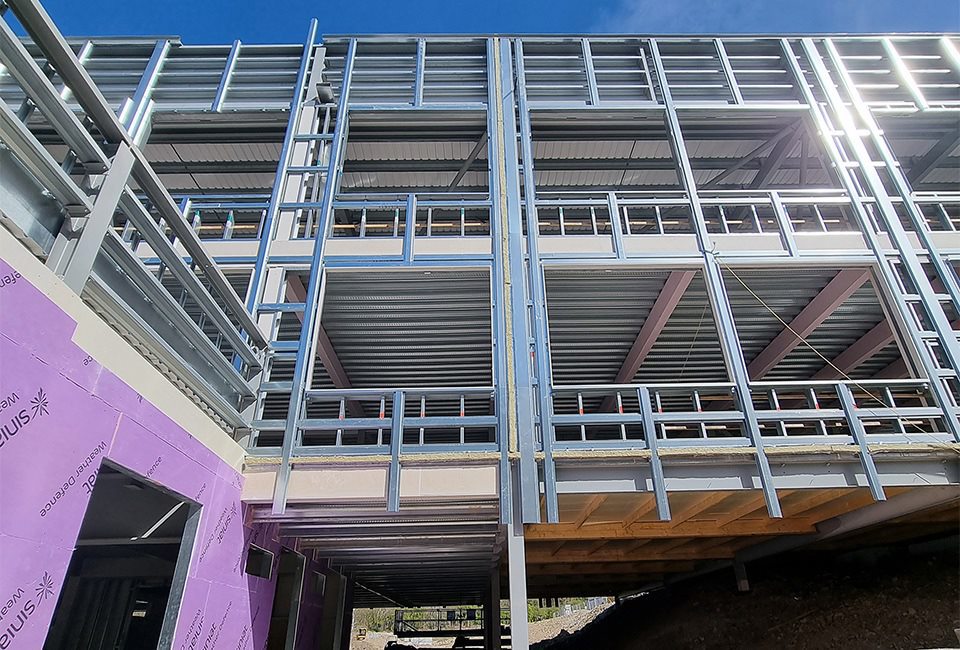

Related Article

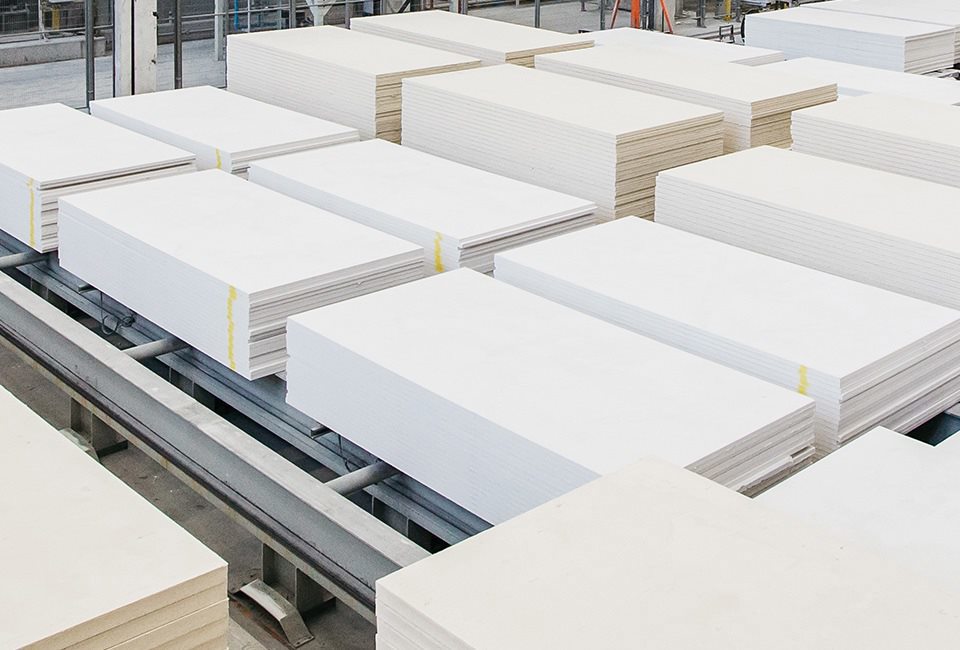

Request a sample
