ST VLUX-015S - VERMICULUX-S®

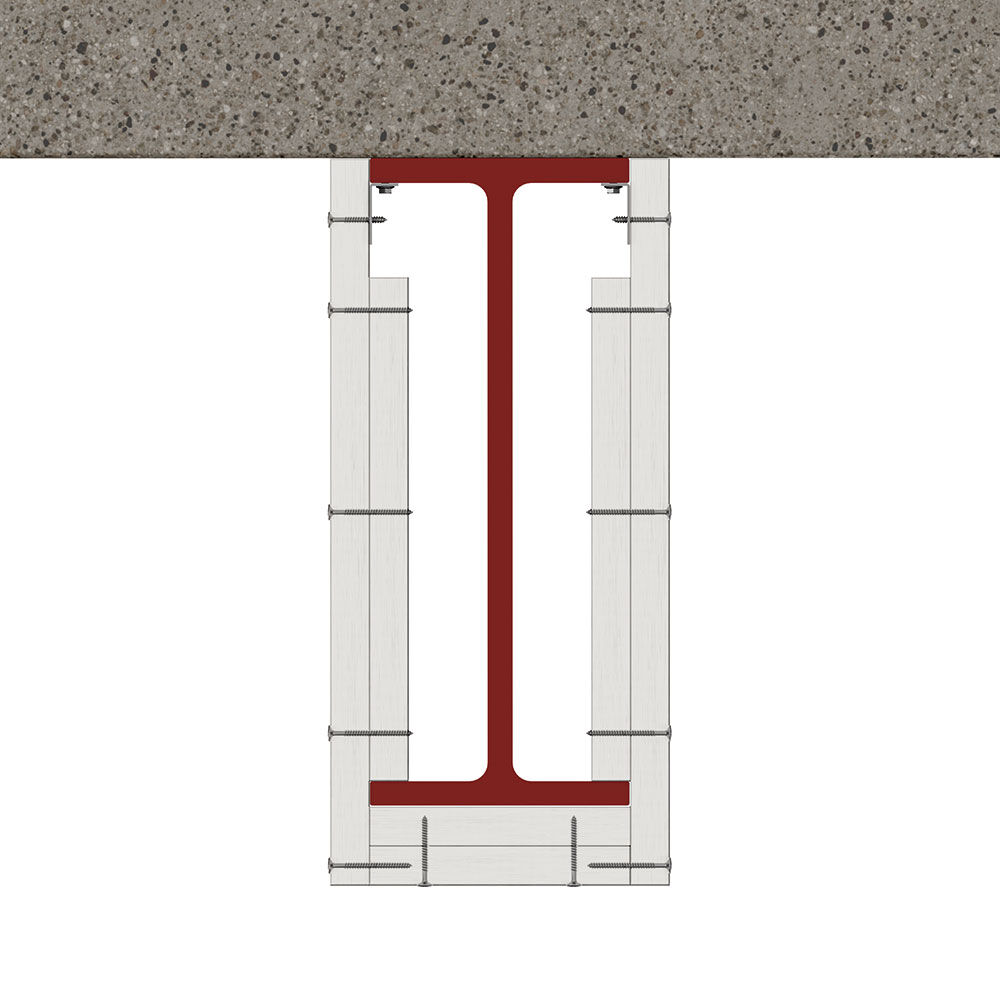

3-Sided beam protection up to 609mm deep and 380mm wide. Board fixed to angle.

A third party certified solution which maintains the loadbearing capacity of structural steel for up to 240 minutes. This system can provide protection to limiting steel temperatures between 350°C to 750°C. Can be installed before the building is weathertight.

ST VLUX-015S
ST VLUX-015S

Further Information

Advantages:

  • BS certification covering a wide scope of application
  • Can be easily decorated if required
  • Limiting steel temperatures ranging from 350°C to 750°C
  • Board to board fixing, for faster installation whilst maximising useable space in the building

Application:

  • For the protection of hot-rolled structural steel
  • Suitable for semi-exposed and unheated spaces
Fire Performance To BS 476-21: 240 min
Fire Performance to EN 13381-4: 240 minutes
Max Steel Depth: 609 mm
Max Steel Width: 325 mm
Max Steel Section Factor: 275 A/V
