TJC SLUX-REI60-010S - SUPALUX®

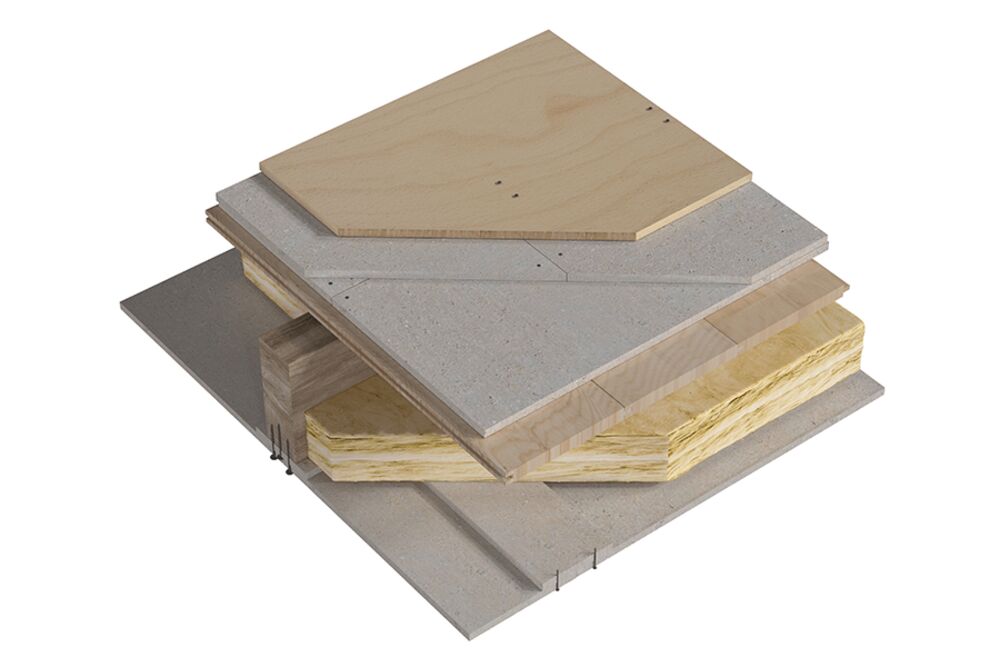

REI60 Fire from above or below to timber joisted floor, minimum joist size 130 x 38mm (with fillets).

This system provides 60 minutes load bearing capacity, integrity and insulation from fire above and below by direct fixing to the timber joists, providing a space saving solution. Can be installed in unheated and semi-exposed areas.

Further Information

Advantages:

  • Direct fix, space saving solution
  • Can be installed in unheated and semi-exposed spaces
  • Can be used in conjunction with Promat timber and metal partitions

Application:

  • Refurbishment
  • Unheated spaces
  • Areas with high humidity
  • New buildings where space is a premium
  • Car ports and undercrofts
Fire Performance To BS 476-21: 60 min
Nominal Thickness: 194 mm
Insulation type: Stone Wool
Insulation Thickness: 30 mm
Insulation Density: 60 kg/m³
Direction Of Fire Exposure: From Above and Below
