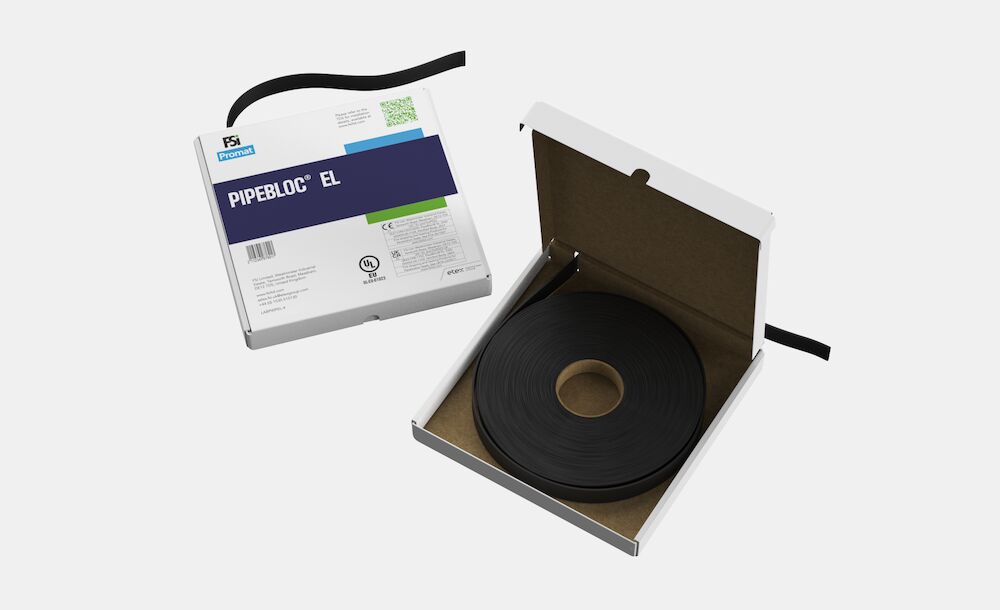

PipeBloc® EL

Pipebloc EL is a fire resistant wrap on a roll consisting of 25m of self adhesive intumescent for interior penetration sealing applications. Pipebloc EL is designed to provide a high volume expansion and pressure seal during a fire to combustible pipes that pass through floor and wall service openings. Pipebloc EL is useful when the pipe diameter is unknown.

PipeBloc® EL

Further Information

Applications:

  • To reinstate fire resistance through walls and floors where combustible services penetrate the substrate
  • Used in conjunction with FSi products such as Stopseal® Batt, Silverseal Compound and Pyrocoustic® Sealant

Benefits:

  • Tested to BS EN 1366-3: 2009 (Fire resistance tests for service installations - Penetration seals)
  • UL EU Approval UL-EU-01023-CPR
  • Up to 120 minutes fire resistance
  • Fire resistance testing in rigid and flexible walls, rigid floors, and STOPSEAL® Batt
  • Based on a thermoplastic composite and is non-toxic
  • Contains no asbestos, ceramic or mineral fibres.
  • Halogen free, resists fungi and vermin
  • Can be used with Plastic Pipes – HDPE, PE, PP and PVC
  • Can be used in areas of high humidity.
  • Easy fixing method using common fixings or ‘pigtail’ screws.
  • CE Marked
  • UKCA Marked
Use Category: X, Y1, Y2, Z1, Z2
Storage Conditions: For unopened material, store in a well-ventilated, dry, cool environment. Recommended temp ranges +5°c - +35°c. Protect against exposure to direct sunlight. Always ensure that safe manual handling procedures are followed at all times
