FRL -/120/120 Self-supporting membrane ceiling with PROMATECT®-100 2 x 20mm and cover strip - against fire from above

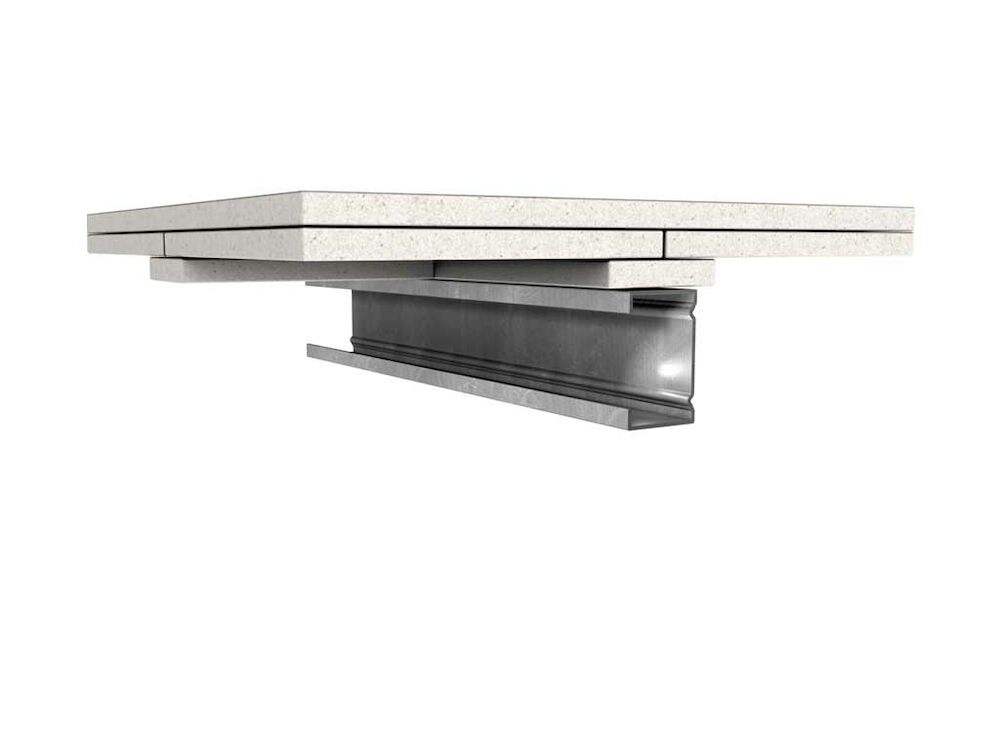

  • Assembling of a two layer of PROMATECT®-100 board, 2 x 20mm thick, screwed above the steel stud, along with a cover strip for a total system thickness of from 150mm.
120 minutes self-supporting membrane ceiling fire from above PROMATECT 100
120 minutes self-supporting membrane ceiling fire from above PROMATECT 100

Further Information

Advantages:
  • Time and cost effectiveness
  • Lightweight
  • Thermal resistance
  • Impact resistance
  • Fire resistance performance
  • Tested and assessed in accordance with the AS 1530: Part 4: 2005
Application:
  • Commercial, industrial, institutional, residential and high rise constructions, or in the restoration of existing buildings
Fire resistance: 120 min
Product: PROMATECT®-100
Exposure to fire: From above
Fire Resistance Level: FRL -/120/120
Fire resistance: 120 min
