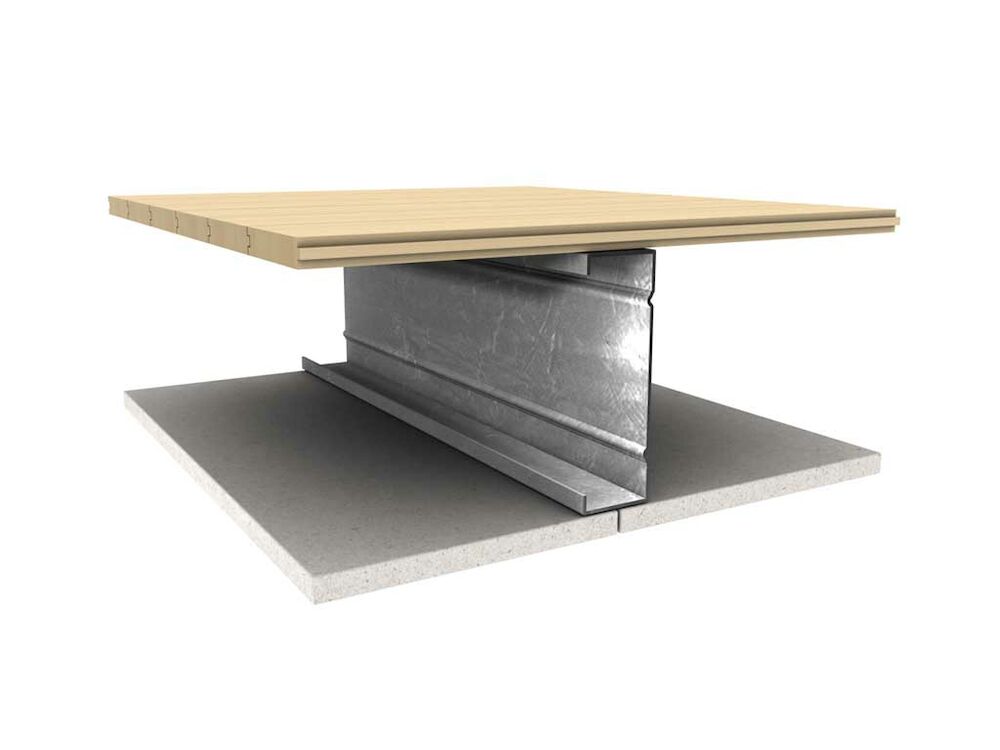

FRL 60/60/60 Ceiling under steel frame timber floor with PROMATECT®-100 1 x 20mm - against fire from below

  • Assembling of a single layer of PROMATECT®-100 board, 20mm thick, screwed below the steel frame of the mezzanine floor for a total system thickness of 253mm.
60 minutes steel frame mezzanine timber floor PROMATECT 100
60 minutes steel frame mezzanine timber floor PROMATECT 100

Further Information

Advantages:
  • Time and cost effectiveness
  • Lightweight
  • Thermal resistance
  • Impact resistance
  • Fire resistance performance
  • Tested and assessed in accordance with the AS 1530: Part 4: 2005
Application:
  • Commercial, industrial, institutional and residential, or in the restoration of existing buildings
Fire resistance: 60 min
Product: PROMATECT®-100
Exposure to fire: From below
Fire Resistance Level: FRL 60/60/60
Fire resistance: 60 min
