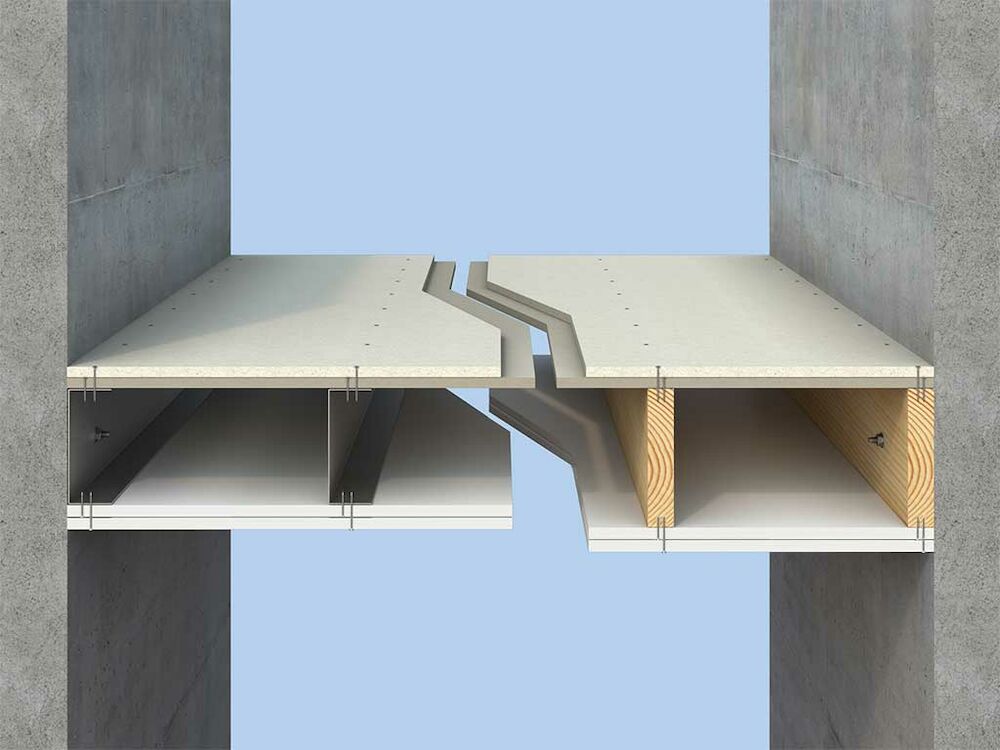

FRL 120/120/120 Steel frame composite floor with Promat SYSTEMFLOOR™ FR as floor panel and 2 x 15mm PROMATECT®-100 ceiling - against fire from above and below

  • Assembling a composite floor with a 18mm thick layer of Promat SYSTEMPANEL™ 2G and a 18mm thick fiber cement board, screw-fixed onto the steel frame, accompanied by 2 x 15mm thick PROMATECT®-100 as ceiling underside.
120 minutes timber frame composite floor SYSTEMFLOOR™ FR PROMATECT® 100
120 minutes timber frame composite floor SYSTEMFLOOR™ FR PROMATECT® 100

Further Information

Advantages:
  • Lapped for fast and easy floor installation
  • Central to innovative Promat SYSTEMFLOOR™ Fire Rated and Loadbearing Floor / Ceiling System
Application:
  • Fire resistance internal flooring and ceiling system
Fire resistance: 120 min
Product: Promat SYSTEMPANEL™ 2G and PROMATECT®-100
Exposure to fire: From above and below
Fire Resistance Level: FRL 120/120/120
Fire resistance: 120 min
