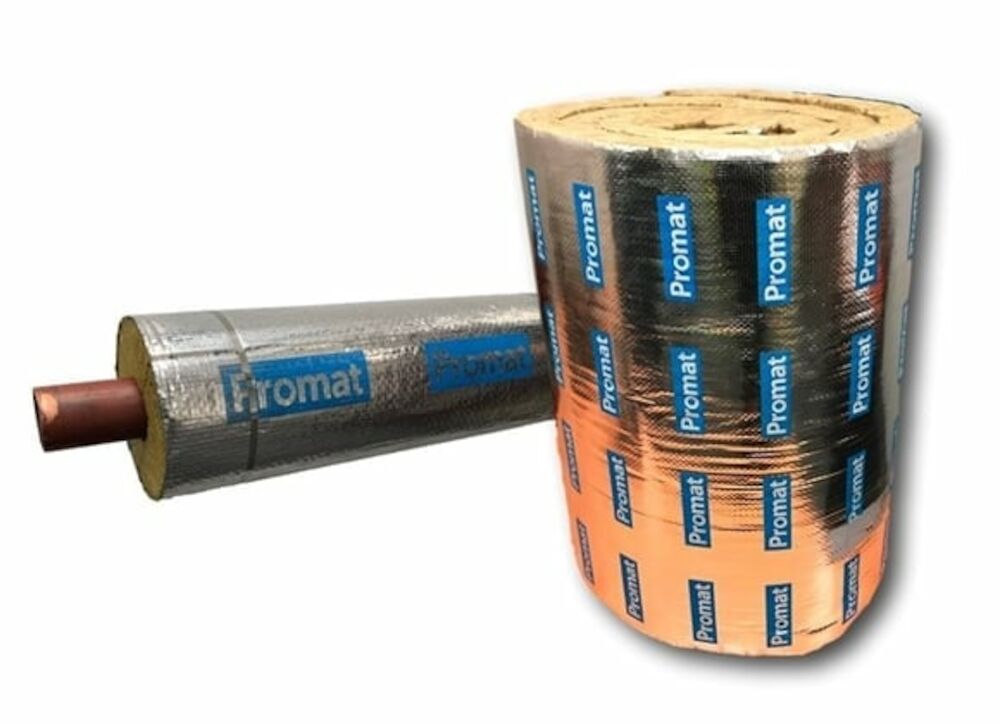

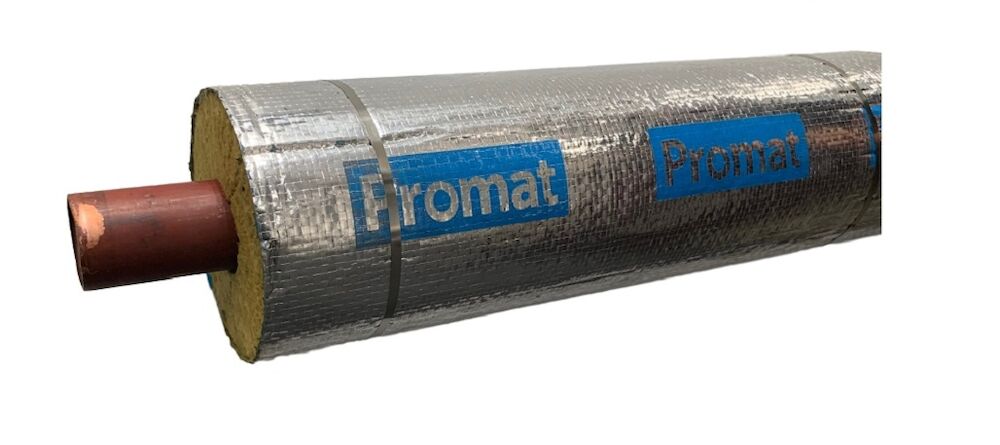

PROMASEAL® Supawrap Sleeve

PROMASEAL® SupaWrap Sleeve is designed to provide insulation criteria onto metal pipes.

The deemed to satisfy requirements of the Building Code of Australia requires copper pipes and other service penetrations to be able to achieve the same insulation criteria as the element they are passing through when tested to the requirements of AS 1530.4:2014.

For metal pipes in walls and through slabs. A length of 600mm is required using the PROMASEAL® SupaWrap. Generally, the requirement is for application to both faces of the element. However, for slabs there are selected approvals available for application to the top side only with various lengths.

PROMASEAL® SupaWrap Sleeve
PROMASEAL® SupaWrap
PROMASEAL® SupaWrap Sleeve
PROMASEAL® SupaWrap

Further Information

Applications:

  • Service Penetrations
  • Available to suit pipes from 20 to 100mm

Benefits:

  • 600mm long for most metal pipes and orientations
  • Will provide up to 120 minutes insulation on various types of services when used in partnership with other Promat Firestopping products.
  • Sold as a preformed sleeve to suit a variety of standard metal pipe sizes
  • PROMASEAL® SupaWrap is an alternative to 38mm Fibretex 450
Storage Conditions: Store in cool and dry conditions.
