PROMATECT®-XS

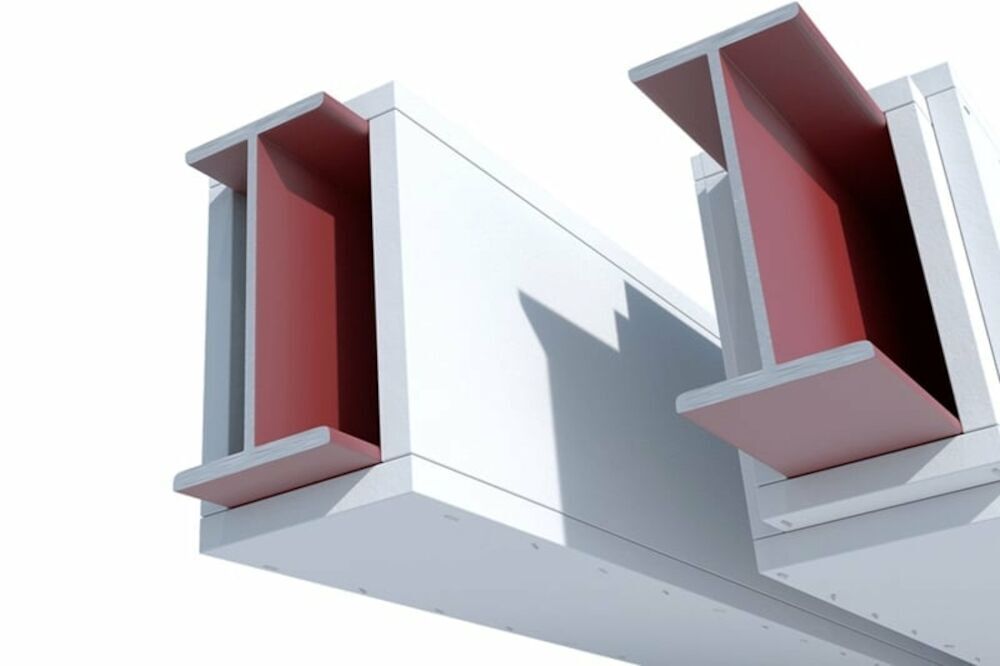

PROMATECT®-XS is an innovative high performing non-combustible fire protective board, based on PromaX® technology, specifically designed for the fire protection of structural steelwork. The second generation of the product combines efficient fire protection with unique ease of installation, high quality surface finishing and enhanced mould and moisture resistance.

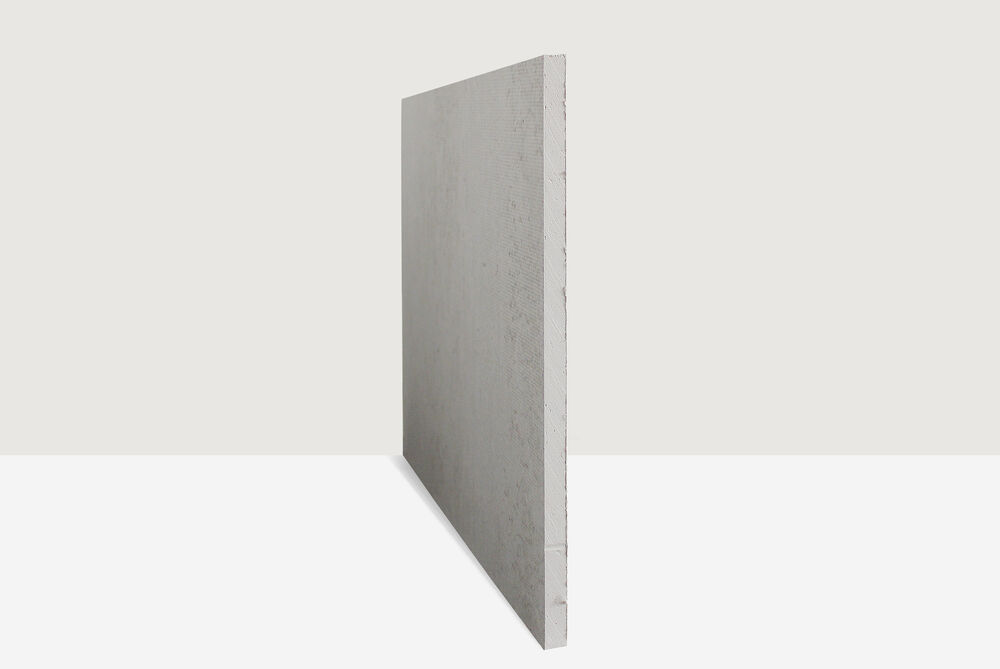

PROMATECT®-XS

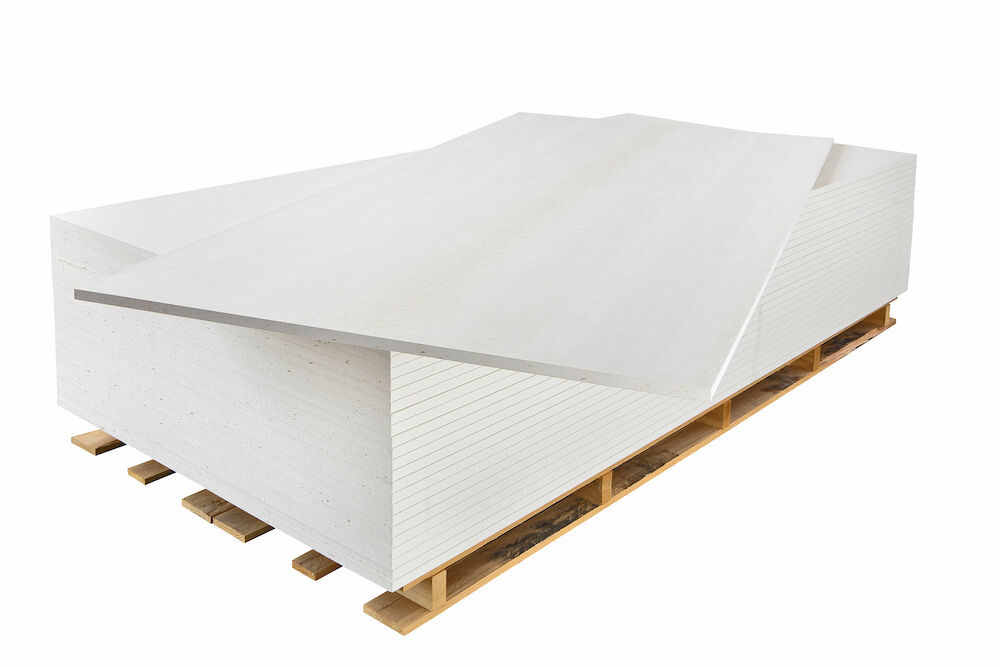

PROMATECT®-XS Pallet

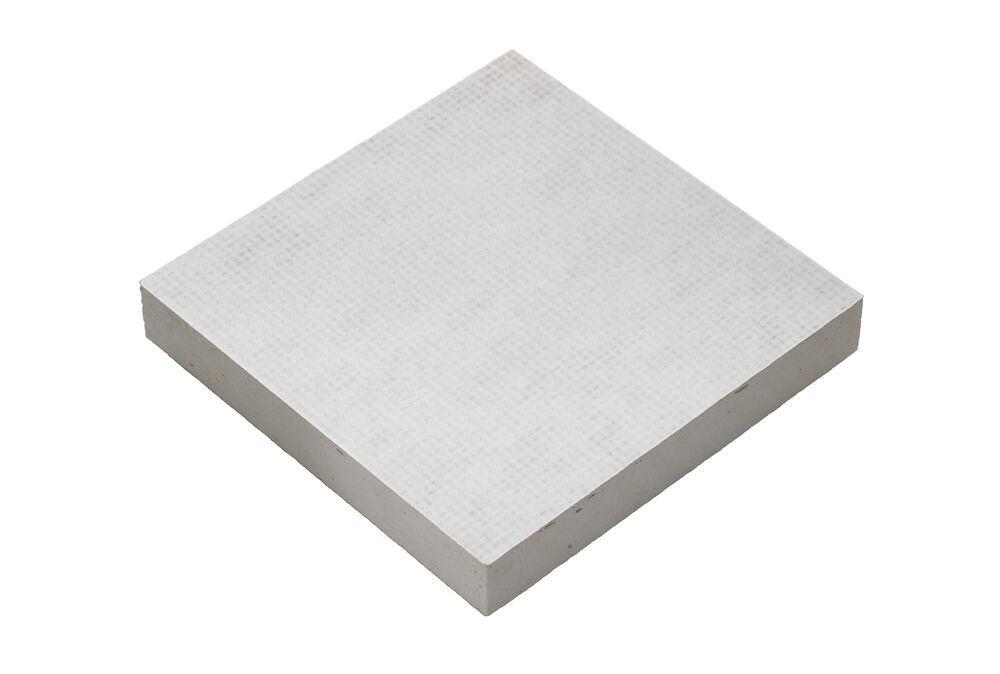

PROMATECT®-XS
PROMATECT®-XS Pallet

Further Information

Applications:

Benefits:

  • Low board thickness needed for any given fire protection
  • Easy installation with staple fixings and no glue or filler
  • Frameless installation for time, space and cost optimization
  • Easy cutting, even with a knife (score & snap)
  • Can be installed before the building is weathertight (up to 6 months semi-exposed)
  • High quality surface finishing
Reaction to fire: A1, non-combustible
Use Category: Y, Z₂
Approx. Thermal Conductivity @ 20 °C (W/m°K): 0.275 W/m K
Bending Strength Longitudinal (N/mm²): 5 N/mm²
Tensile Strength Longitudinal (N/mm²): 1.5 N/mm²
Compressive Strength (N/mm² perpendicularly to the board surface): 6 N/mm²
Storage Conditions: Store in a dry and well-ventilated space, under cover, on a flat surface.
