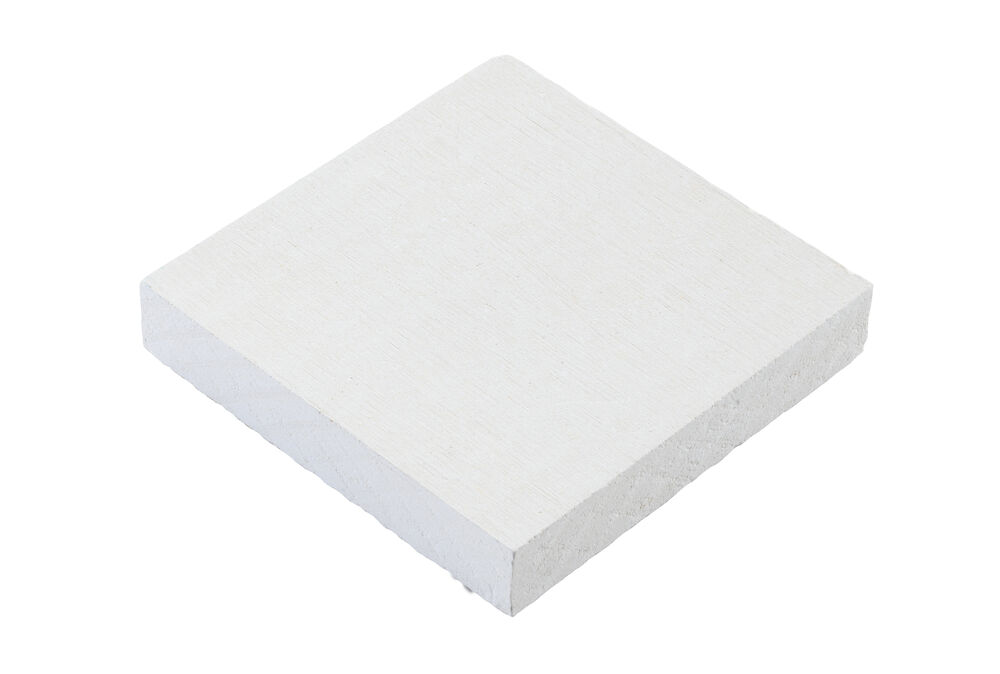

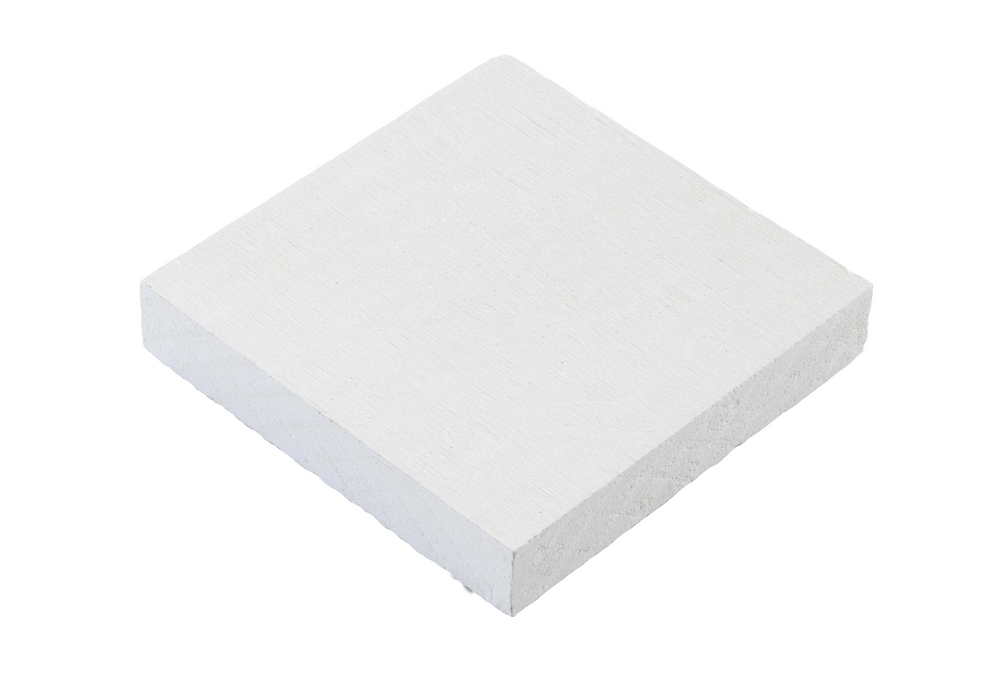

PROMASIL® 1100 Super

PROMASIL®-1100 SUPER are large-size, lightweight insulating boards with very good thermal properties. Their homogeneous and stable mineral matrix structure guaranties excellent mechanical and thermal characteristics

PROMASIL® -1100 SUPER is the result of combining our PROMAXON® technology, an exclusively engineered mineral matrix structure that brings controlled smaller pore size in the calcium silicate matrix, together with introducing selected opacifiers in the mineral composition to further lower the thermal conductivity. PROMASIL® -1100 SUPER is the replacement for the VERMICULUX® board and can be used in a majority of its applications.

PROMASIL® 1100 Super

Further Information

Applications:

  • Penetration Seals
  • Service Enclosures

Benefits:

  • Single layer systems for penetration seals in walls and slabs up to -/120/120.
  • 1, 2 & 3 sided bulkheads up to FRL 120/120/120 from both directions Lightweight, only 18kg/m2 for 60mm sheets
  • Multiple Sheet sizes
  • Multiple Uses including fire damper protection along with penetration seals and bulkheads
  • Sheet sizes: 2500 x 1200mm, 1250 x 1200mm & 1250 x 600mm
  • Thickness: 60mm
Reaction to fire: A1, non-combustible
Bending Strength Longitudinal (N/mm²): 1.6 N/mm²
