PROMASEAL®-FC Retrofit Collars

Square based PROMASEAL®-FC Retrofit Collar is multi purpose collar designed for use with concrete slabs, masonry and lightweight walls and lined ceilings.

The split type collar can be retrofitted where necessary. It is available in a range of sizes to suit plastic pipes up to 315mm outside diameter.

Note that PROMASEAL®-FC Retrofit Collars above 150mm have a circular base.

PROMASEAL® Retrofit Fire Collar (Square Base) FC
PROMASEAL® Retrofit Collar (square base)

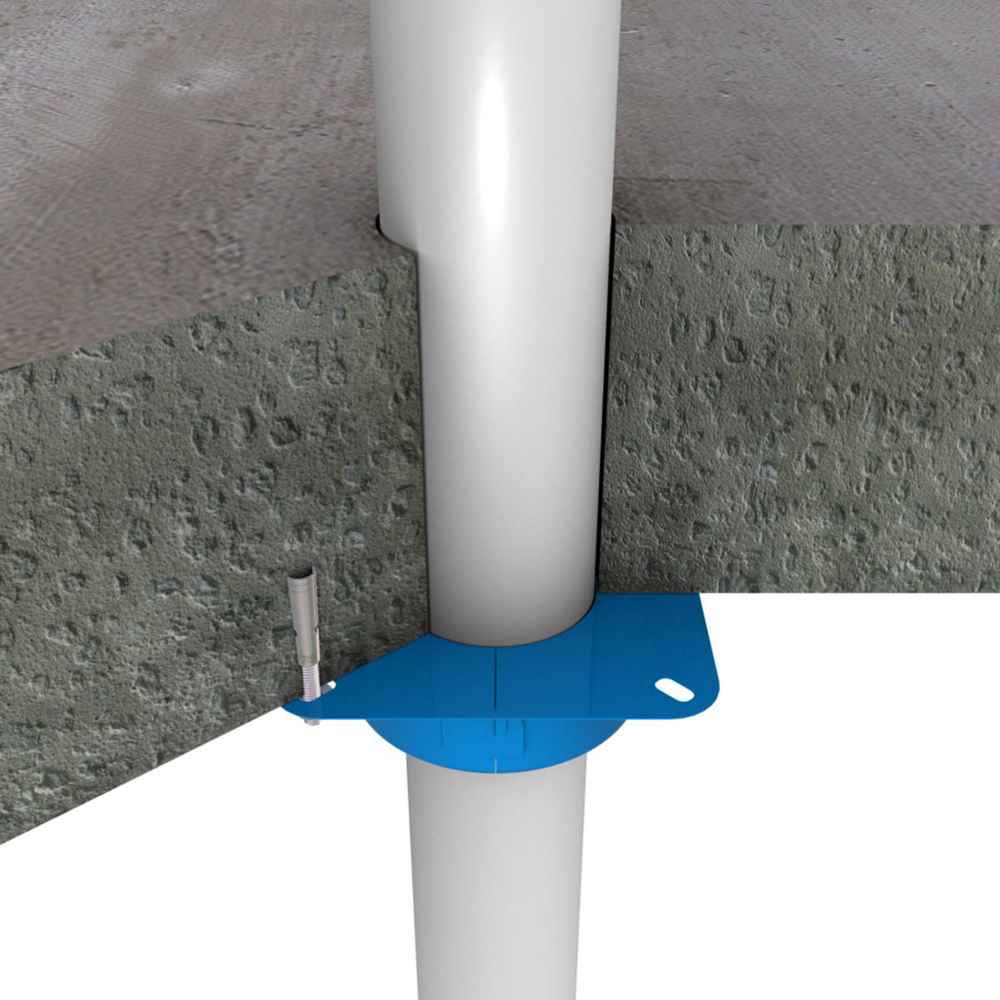

PROMASEAL® FC Retrofit Collar on slab
fc dimension
PROMASEAL®-FC Retrofit Collars
PROMASEAL® Retrofit Fire Collar (Square Base) FC
PROMASEAL® Retrofit Collar (square base)
PROMASEAL® FC Retrofit Collar on slab
fc dimension

Further Information

Applications:

  • Fire Collar for plastic pipe and other service penetrations
  • Tested in walls (Plasterboard / Speedpanel / AAC / Hebel / Concrete)
  • Tested in concrete slabs
  • Tested with plasterboard ceilings
  • Dimensions:
Code No. Pipe Nominal Diameter H D1 D2 D3 (Flange)
FC40 40mm 43mm 45mm 77mm 112mm
FC50 50mm 43mm 58mm 90mm 125mm
FC65 65mm 43mm 71mm 103mm 138mm
FC80 80mm 43mm 85mm 123mm 158mm
FC100 100mm 53mm 112mm 150mm 185mm
FC150 150mm 73mm 162mm 200mm 235mm
FC250 250mm 120mm 254mm 316mm 380mm dia
FC300 300mm 160mm 318mm 402mm 466mm dia

Benefits:

  • To protect pipes with nominal OD of 40, 50, 65, 80, 100, 150, 250 and 315mm
  • Tested up to 4 hrs
  • Tested with uPVC, HDPE, Raupiano, GF Cool Fit 2.0, Fastflow, Post Mix Lines, Geberit Super Tube, Triplus
  • Can be used to protect cables and lagged copper pipes
  • Wall, floor and ceiling application
  • Check the app or system certificates for specific pipe sizes tested and FRL's achieved.
  • https://www.promat.com/en-au/construction/tools-services/software-apps/fire-collar-selector/
Approx. Expansion Ratio (550 °C): 1:9
Approx. Expansion Temperature (°C): 185 °C
Colour: Blue
Shelf Life (months): 120 months
Storage Conditions: Store in cool and dry conditions.
