PenoPatch

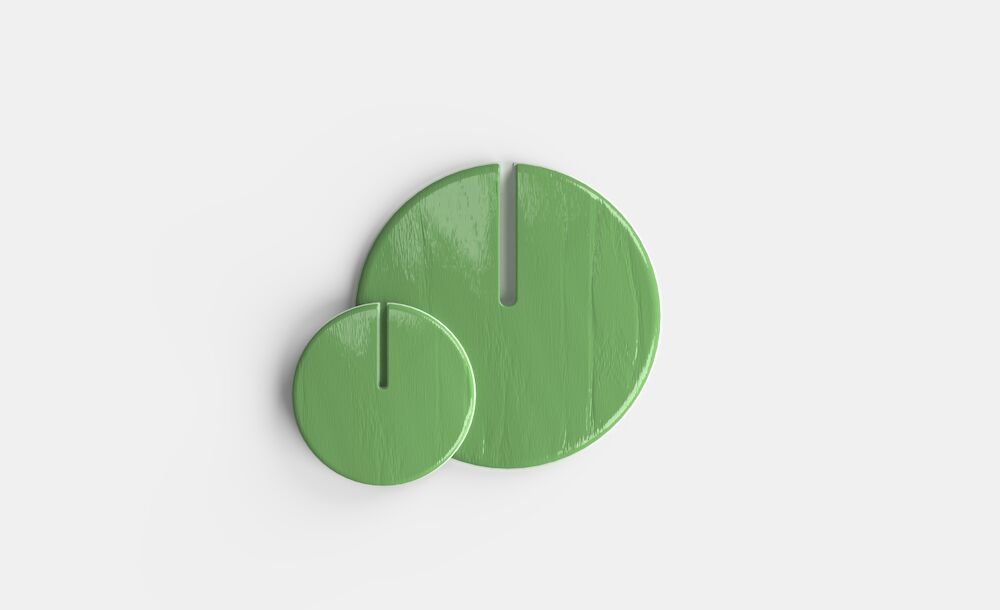

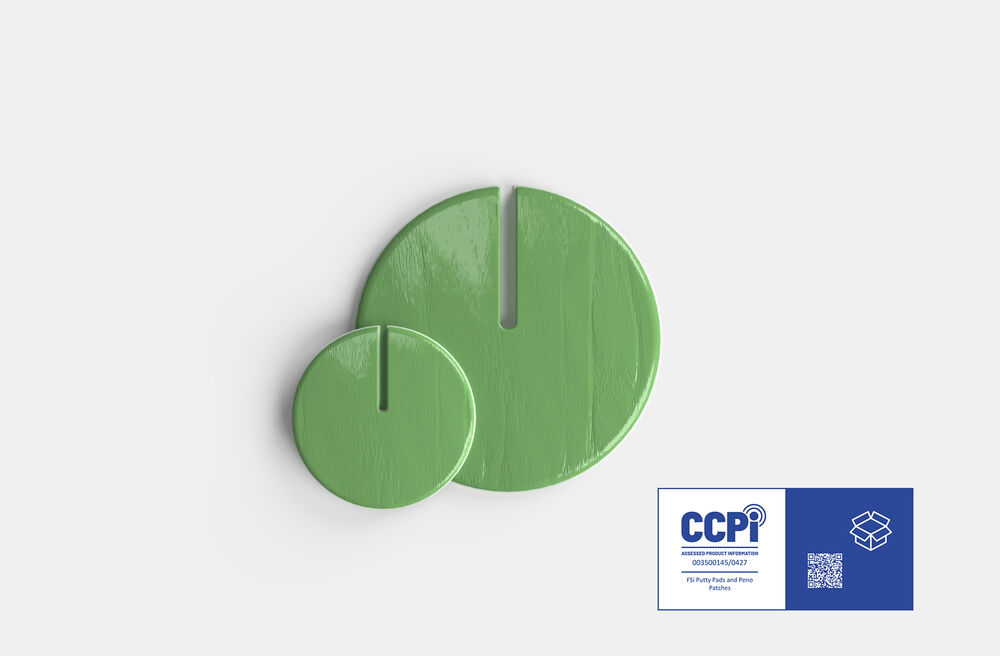

PenoPatch Fire Resistant Sealing System is a putty-based system used to reinstate the fire resistance of wall constructions where small apertures are formed for the penetration of single or multiple services.

Further Information

Applications:

  • To reinstate fire resistance through rigid and flexible walls
  • Single small plastic and metallic service penetrations
  • Small cable bunch service penetrations
  • Blank Openings

Benefits:

  • Tested in accordance with BS EN 1366-3: 2021 (Fire resistance tests for service installations - Penetration seals)
  • Easy installation
  • Up to EI60 fire resistance *Fire resistance tested in flexible walls, rigid walls
  • Tested in service openings 25mm x 25mm and 50mm x 50mm
  • Tested with Small Metallic Pipes, Cables, and Cable bunches
  • 2 different size combinations, covering most small openings
  • Ideal for Historical Building Upgrades or new build
Approx. Expansion Temperature (°C): 180 °C
Solids Content (%): 90 %
Colour: Green
Storage Temperature Min (°C): 5 °C
Storage Temperature Max (°C): 35 °C
